Tunnel Type Beer Beverage Pasteurization Machine Beer Spray Sterilization Cooling Line
Product Introduce

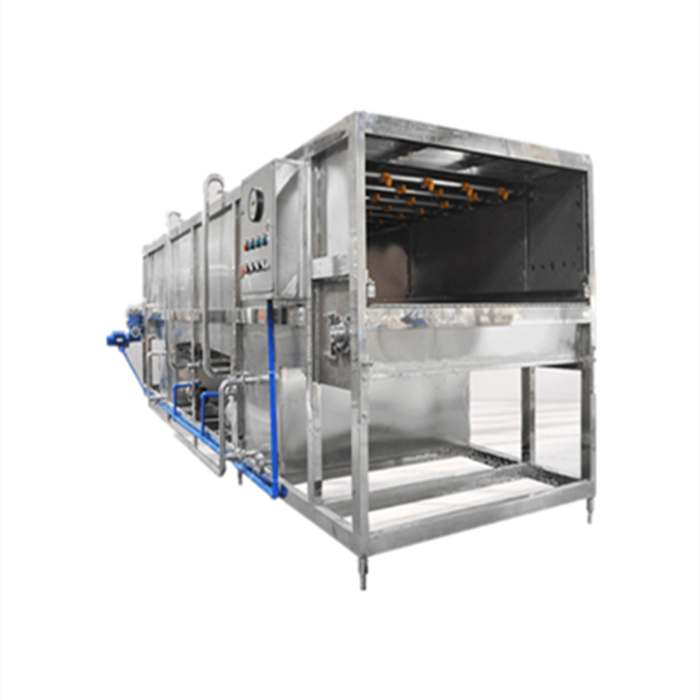

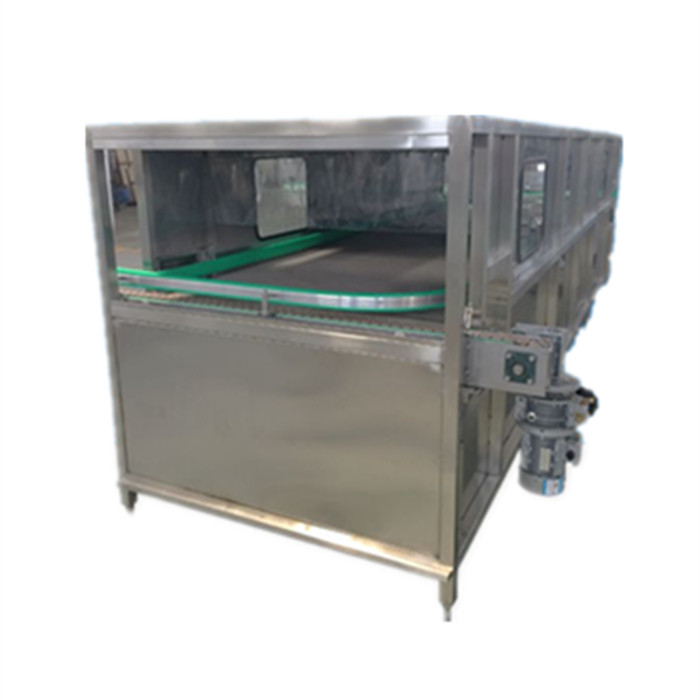

Continuous spray sterilization machine is specially designed for dairy, juice, beverage, beer, food, medicine and other filling or packaging products after the pasteurization equipment, is the material through sterilization, cooling to extend the shelf life of the ideal equipment, especially the automatic production line to provide secondary equipment. According to the user of different products heating, sterilization, heat preservation, cooling of different process requirements, different process design, to meet the process requirements, according to user requirements, configuration of the corresponding automatic control system.
Continuous spray sterilizer classification
1. Automatic spray sterilization machine: PLC automatic computer program control, according to the set process requirements, the whole process of operation and production control.

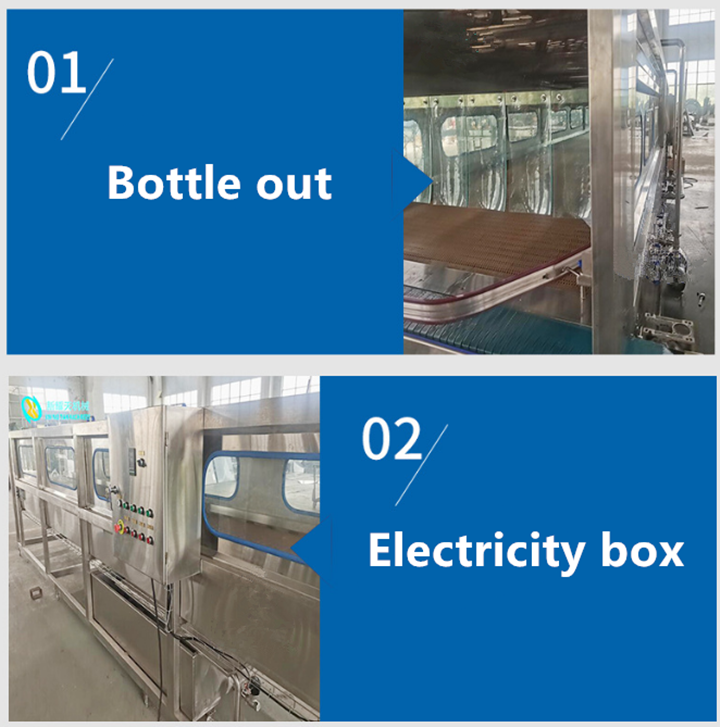

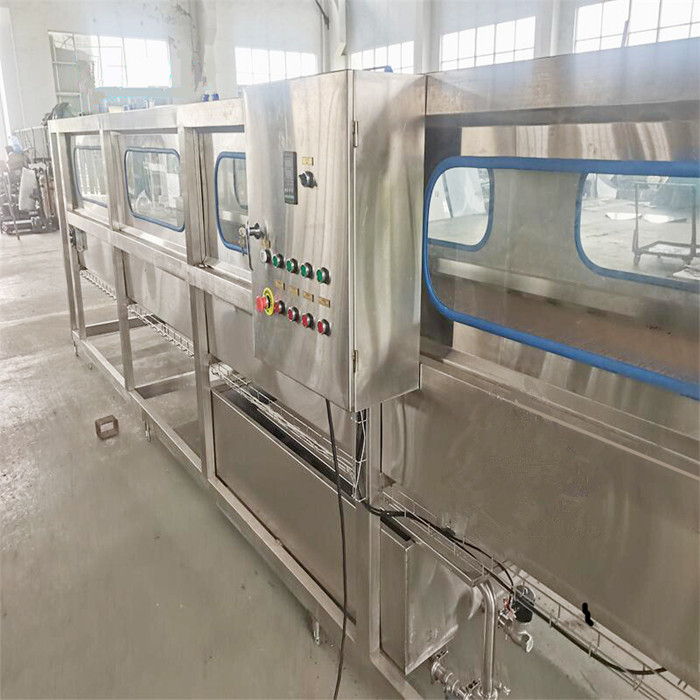

2. Semi-automatic spray sterilization machine: The whole process of operation and operation is controlled by semi-automatic. Operators from the control panel on the pump, valve and back into the flow control function, by P | D (temperature control) to maintain the sterilization temperature, the sterilization temperature changes on the recorder have accurate records.
Continuous spray sterilization machine features

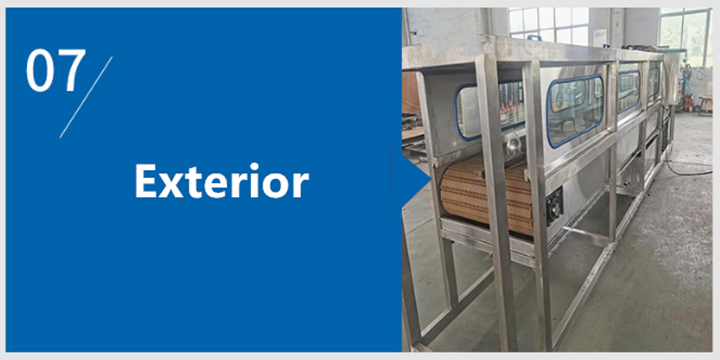

1, The equipment frame is made of stainless steel, the overall structure is compact, the appearance is healthy and beautiful;
2, Plastic mesh chain plate, can be used for a long time at high temperature (98), a short temperature 104°C;

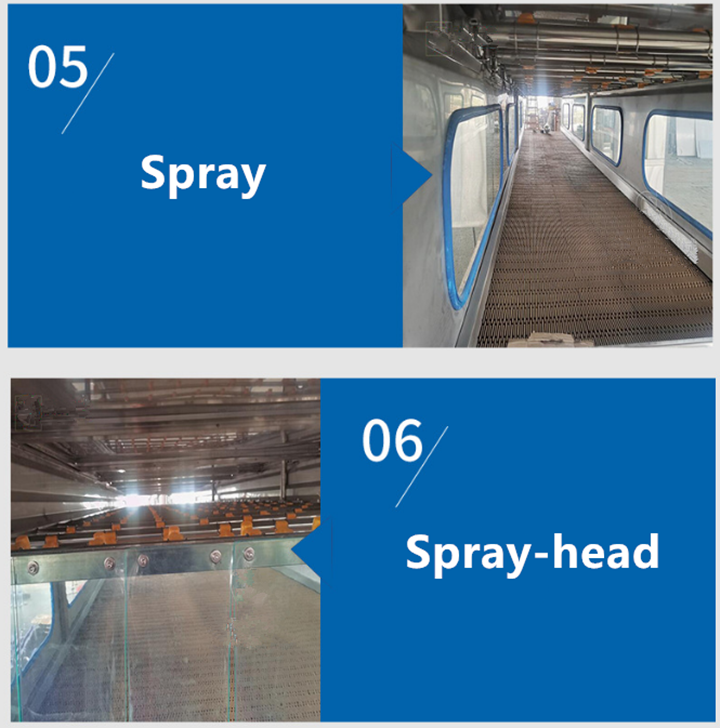

3, Solid conical wide-angle nozzle, flow distribution is uniform and stable, constant temperature field;
4, A variety of energy heat recovery technology comprehensive utilization, energy saving;
5, Temperature sensor Pt100, high measurement accuracy, up to ±0.5°C;
6, Multi-process combination, reasonable technology, can handle a variety of materials;
7. Sterilization temperature is controlled by PLC touch screen.
8, The total processing time frequency conversion control, can be adjusted according to the production process;

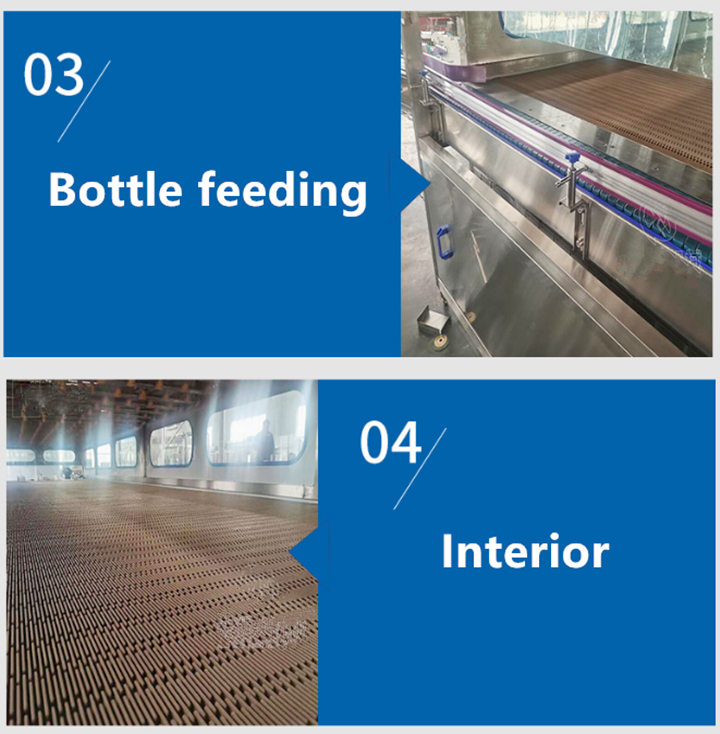

9, Packaging for non-circular PP bottles, plastic bags, roof boxes, glass bottles, cans and other products configuration automatic material organization, and automatic transportation production line connection transition smoothly;
10, Can provide users with heat distribution testing services, the use of expert system, online monitoring of the whole process of production temperature changes.
