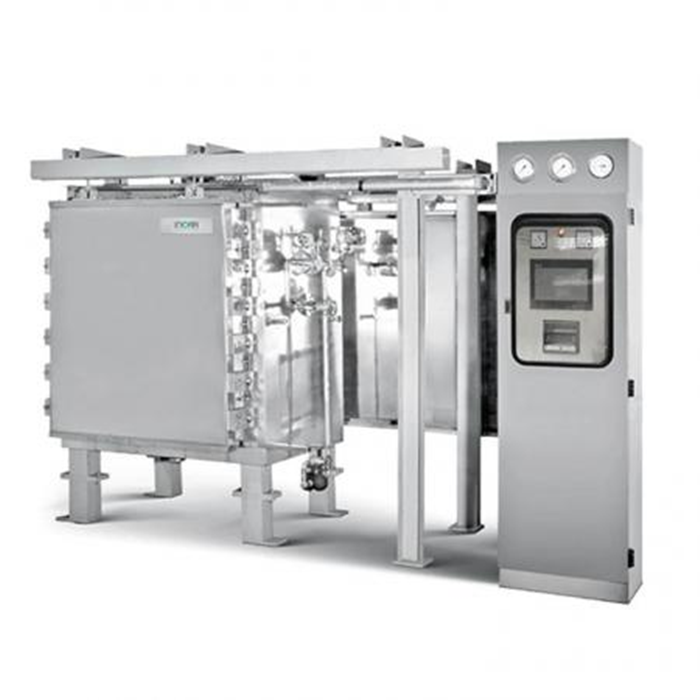

Autoclave Steam Sterilizer Medical Washing Machine
Product Introduce
Steam sterilizeris is an advanced intelligent equipment, which has been widely used in sterilizing infusion of glass bottles, plastic bottles and bags of pharmaceutical companies and medical institutions. Industrial sterilizer adopts air and steam as sterilizing medium, heating, sterilizing and cooling the filling bottle/bag, avoiding dead Angle in steam sterilization and re-pollution of impurity water in cooling stage. Industrial autoclave does not explode bottles and bags in the sterilization process, which can achieve uniform sterilization effect at lower temperatures.
Features
1. Safety Sterilized Welding: sterilization chamber is welded using stainless steel SUS304 to avoid contamination from the insulation material after long use.
2. Omplete Contained: during the process of sterilization and when the sterilizer is off, the dampers are always tightly closed to ensure the sterilizing chamber is in a contained condition.
3. High Efficiency Filter: the absolute Heap Filter 99.97%, this filter can tolerate temperature above 350°C and filter particles below 0.3 Mirco.
4. Three Functions In One: integrated sterilization, cooling and leakage test to save time, energy, space and labor.
Specification
Model |
Volume(Liter) |
Chamber size(WxHxD) |
Basic MachineDimensions(WxHxD) |
SteamConsump ion(kg/H) |
VacuumPump(HP) |
We a ght(kg) |
SIMY-041 |
96 |
400x400x600 |
700x1300x900 |
60 |
1 |
1000 |
SIMY-061 |
360 |
600x600x1000 |
1000x1300x1300 |
100 |
2 |
1500 |
SIMY-081 |
800 |
800x1000x1000 |
1200x1700x1300 |
130 |
3 |
2000 |
SIMY-101 |
1440 |
1000x1200x1200 |
1400x1900x1500 |
200 |
3 |
3000 |
SIMY-102 |
2400 |
1000x1200x2000 |
1400x1900x2300 |
280 |
5 |
4000 |
SIMY-121 |
1872 |
1200x1300x1200 |
1600x2050x1500 |
240 |
3 |
3500 |
SIMY-122 |
3120 |
1200x1300x2000 |
1600x2050x2300 |
350 |
71/2 |
5000 |
SIMY-141 |
2680 |
1400x1600x1200 |
2000x2350x1500 |
310 |
5 |
4500 |
SIMY-142 |
4480 |
1400x1600x2000 |
2000x2350x2300 |
415 |
10 |
6000 |
SIMY-143 |
8060 |
1400x1600x3600 |
2000x2350x3900 |
630 |
15 |
9000 |
