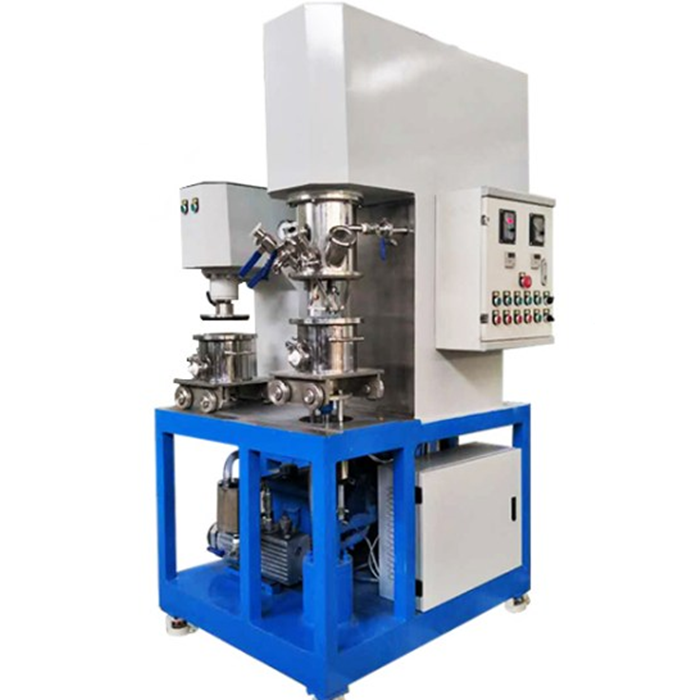

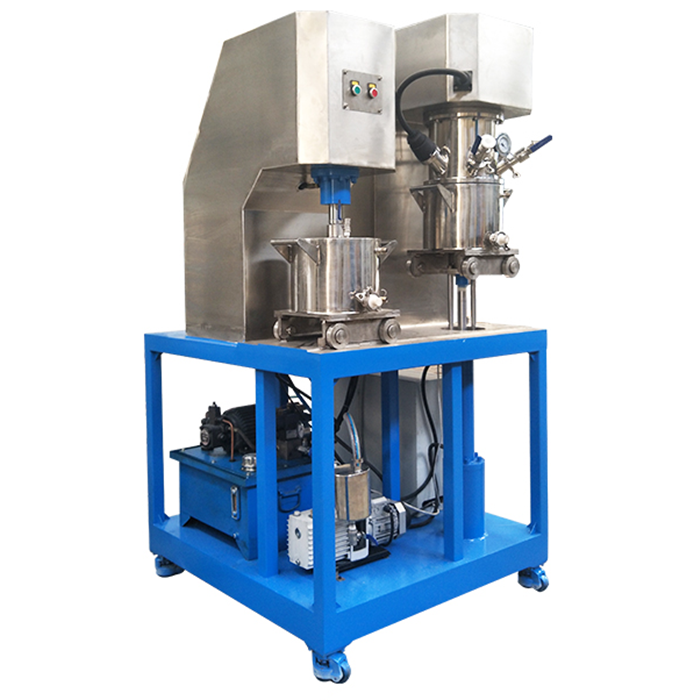

Lab High Viscosity Dual Planetary Power Hybrid Mixer 4-27 L
Product introduce
The laboratory double planet vacuum mixer is a highly non-standard strong mixing and stirring equipment developed for various universities, research institutions, and factory laboratories. Composed of a low-speed stirrer, high-speed disperser, wall scraping and bottom scraping, and temperature measuring probe, it has rapid mixing, reaction, dispersion, and dissolution effects, especially suitable for dispersion and mixing of solid-liquid and liquid-liquid phases; It is designed with different planetary gear transmission ratios based on the viscosity of materials, with a large torque variation range, making it the preferred mixing product for industries such as adhesives, silicone, and lithium battery slurry; At the same time, the equipment has a function of scraping walls and bottoms, without dead corners or residues, and is easy to clean. It is equipped with a unique control system, ensuring safe and convenient operation; The equipment can also be equipped with extrusion devices and sliding tracks to achieve integrated mixing and discharge operations. For materials with temperature requirements, suitable temperature control systems can be equipped for independent operation and high control accuracy.
Working principle
The laboratory dual planet vacuum mixer is composed of a frame, motor, reducer, hydraulic system, transmission system, planetary gearbox components, mixing components, control system, etc; The kinetic energy is transmitted to the planetary gearbox through the motor reducer, and sufficient torque is transmitted to the transmission shaft through gear meshing inside the planetary gearbox, driving the dispersed shaft and low-speed meshing shaft to shear and mix; The internal mixing and dispersing components of the planetary gearbox rotate at different speeds, while also rotating at low speeds around the centerline. The inner wall of the barrel body is precision machined by a large vertical lathe and polished by a large polishing machine to ensure the overall roundness and internal concentricity of the barrel body. It is equipped with a scraping device and uses polytetrafluoroethylene material with good corrosion resistance, high temperature, and wear resistance as the elastic wall sticking material for scraping the wall and bottom. It can achieve uniform mixing of the entire material without dead corners.
Application fields: Lithium battery paste, sealant, silicone, adhesive, ink, food, medicine, cosmetics, new energy materials, and other industries.
Applicable materials: dispersion and mixing of solid-liquid and liquid-liquid phases, mixing of various fluids with viscosity less than 1.5 million CPS, and solid content less than 90%.
Specification
Model
J-2
J-8
J-10
J-15
Design Volume (L)
4
8
15
27
Available capacity (L)
2
5
10
15
Power of agitator (KW)
0.75
1.1
1.5
2.2
Turning speed (RPM)
0-65
0-65
0-65
0-65
Rotation speed (RPM)
0-170
0-170
0-170
0-170
Scrape the wall rotation speed (RPM
0-65
0-65
0-65
0-65
Dispersed power (KW)
0.75
1.5
2.2
3
Dispersion rotation speed (RPM)
0-3000
0-3000
0-3000
0-3000
Hydraulic power (KW)
0.75
0.75
0.75
0.75
Lift way
Hydraulic lift
Lifting time (S)
The 10-20S is adjustable
Lifting stroke (mm)
300
350
400
400
Vacuum power (KW)
0.37
Vacuum degree (MPA)
≤-0.098
Heating method
Built-in electric heating rod or external water bath (oil bath) system
Cooling-down method
Natural cooling or external circulating water system
Temperature measurement mode
Material directly contact temperature measurement or interlayer temperature measurement
Temperature error (℃)
±1℃
Control method
Button-type or PLC control
Working power supply
380V-480V/50-60HZ/3p
Equipment material
The contact part with the material is of SUS304 or SUS316L sanitary grade
