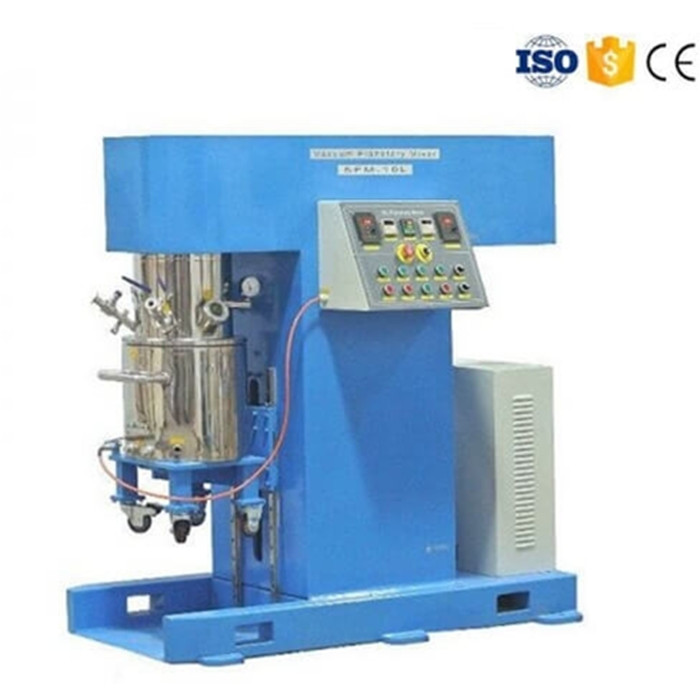

10L Lab Planetary Vacuum Mixer for Ceramic Slurry

Power Supply

• Total power:  6000 Watt Max.
• Voltage: 380VAC 3phase (220VAC 3 Phase is also available. Contact us for the detail information)
• The power plug is not included.

Revolution Speed

• The revolution speed of the main shaft: 0 - 65 rpm
• Stirring blade rotation speed: 0 - 1000 rpm,
• Dispersing blade rotation speed: 0 - 3000 rpm,

Vacuum

• The vacuum level: ≦ -0.098MPa
• The heavy duty double stage vacuum pump is included. Click the pump pic for detail information.

Lifting system

• Hydraulic lifting cylinder
• 370W/4P electric driving motor
• lifting height: 300mm max.

Bucket

• SS304
• Thickness: 6mm (inner wall), 4mm (outer wall)
• Dimensions: Dia.310mm x H.220mm
• Capacity:   10 Liter effective （16L Nominal）
• Water cooling jacket (side and bottom), water pressure < 40psi
• Fork slot at bottom of the bucket for easy transportation by a forklift
• Temperature monitors and over-temperature alarm

Mixing blade

• Tolerance of beater and bottom: 2-4 mm
• Tolerance of beater and bucket wall: 2-5mm
• Tolerance of two beaters: 3-8mm
• Made of SS 304

Scraping blade

• Blade is made of PTFE.
• Blade rotates with the main shaft.

Water Recirculating Chiller

One Digital Temperature Controlled Recirculating Water Chiller with 6 Liters Tank, 16L / min Flow - EQ-KJ5000-220 included

Connected Accessories & Fittings

• One DN50 feed hole
• Three-piece type ball valve outlet
• Two DN50 sight glasses
• One G1/2" vacuum connector with vacuum pump
• One G1/2" air outlet
• One vacuum meter
• 12mm O.D. water inlet and outlet fittings

Dimension

•  1600 Lx 660 W x 1530 H, ( mm)

Compliance

• CE Certified

Warranty

• One year limited warranty with lifetime technical support

Net Weight

650 kg

Shipping weight: 1000kg
Shipping dimensions: 1740 x 1090 x 1960mm
