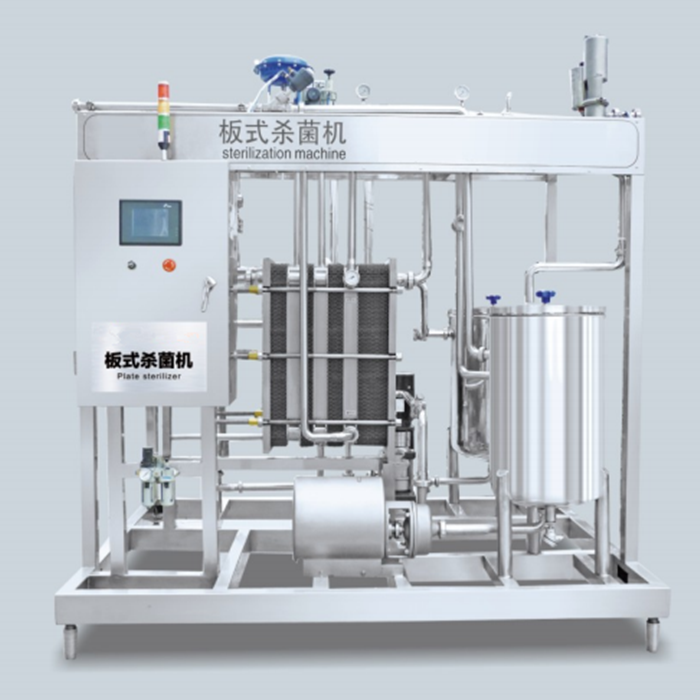

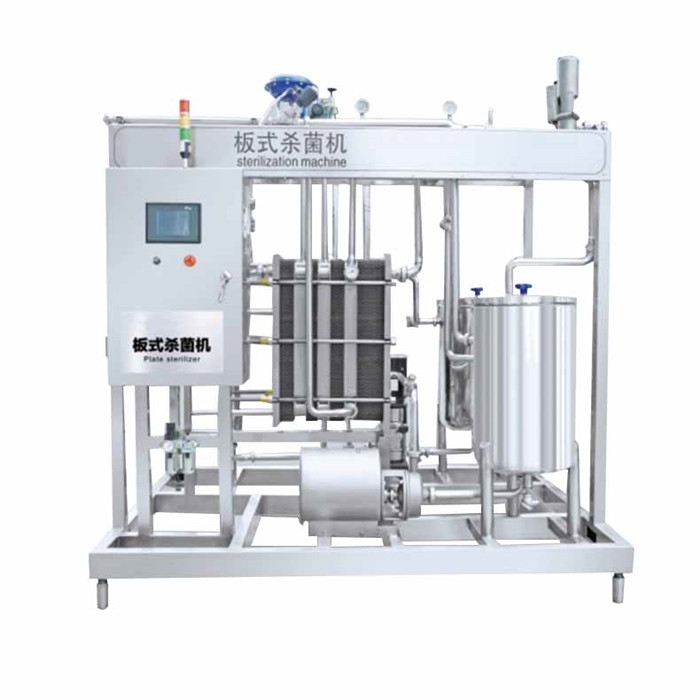

Plate Sterilizer Beverage Beer Juice Sterilizer
Product Introduce
This machine is suitable for continuous sterilization of fresh milk, fruit juice, beer, beverages, or similar products. It can be connected to equipment such as centrifuges, degassers, flash evaporation, etc.
The production process can adapt to various process requirements of users. In sterilization work, materials and thermal media undergo heat exchange in a plate heat exchanger, with a high heat recovery rate of over 94%.
This equipment has the advantages of high heat exchange efficiency, small footprint, compact structure, and convenient operation and maintenance. Extremely versatile, saving energy consumption and reducing production costs.
Specification
|
Name/unit/models |
SIMY-1 |
SIMY-2 |
SIMY-3 |
SIMY-5 |
|
Production capacity(T/h) |
1 |
2 |
3 |
5 |
|
Material inlet temperature(℃) |
5 |
5 |
5 |
5 |
|
Sterzation(℃) temperature(℃) |
85-135 |
85-135 |
85-135 |
85-135 |
|
The interface size(mm)
|
∮38 |
∮38
|
∮38
|
∮51
|
|
Equipment weight(kg) |
~928 |
~985 |
~1050 |
~1350 |
|
Steam pressure(MPa) |
0.4 |
0.4 |
0.4 |
0.4 |
|
Compressed air pressure(MPa) |
0.6 |
0.6 |
0.6 |
0.6 |
|
Overall d mensions(mm) |
1500X1500X2000 |
2200X2000X2400 |
2200X2000X2400 |
2400X2200X2500 |
