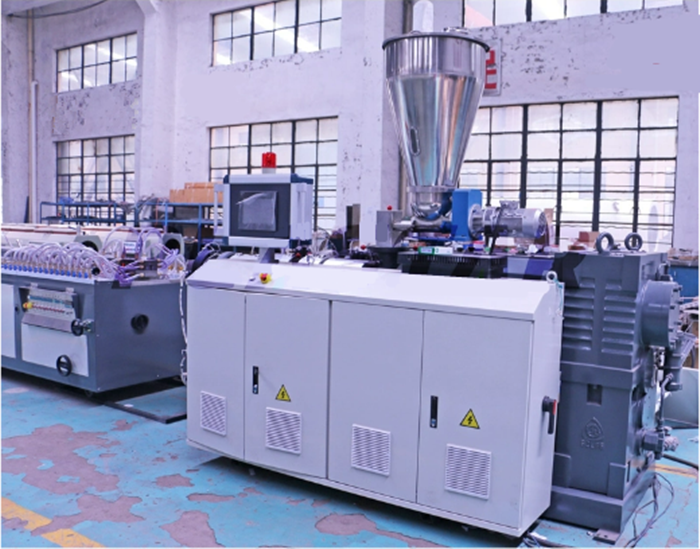

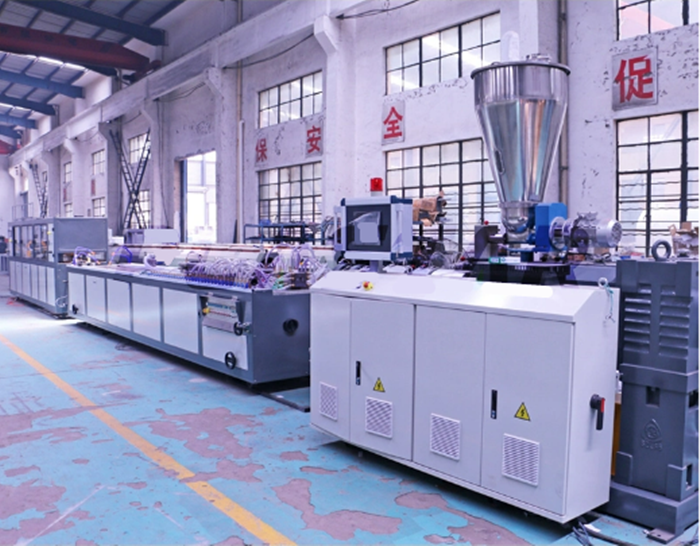

PE Wax Extrusion Making Machine
Equipment introduction
Polyethylene wax (PE), also known as the polymer wax or polyethylene wax. Because of its good cold resistance, heat resistance, chemical resistance and abrasion resistance and has been widely used. In the normal production, this part of the wax as an additive can be directly added to polyolefin processing, it can increase the luster of the products and processing performance. As a lubricant, its chemical properties of stability, electric performance is good. Polyethylene wax and polyethylene, polypropylene, polyethylene wax acid ethylene, ethylene propylene rubber, butyl rubber intermiscibility is good. Can improve the liquidity of polyethylene, polypropylene, ABS and poly (methyl methacrylate, polycarbonate demoulding. Compared for PVC and other external lubricant, polyethylene wax has better internal lubrication.
Specification
|
Screw diameter |
140 mm |
|
Maximum extrusion diameter |
1 mm |
|
Productive capacity |
100-200 Kg/h |
|
Positioning accuracy |
1 mm |
|
Overall dimension |
5300×140 mm |
|
Motor power |
45 kw |
|
Main engine screw diameter |
φ140, diameter ratio1：35 |
|
Screw and barrel materials |
38crmoala;Nitriding treatment, hardness hv900-1100, depth of 0.5-0.7 |
|
Yield |
φ140:100-190kg/h, 3-4 T/day; φ160:150-250kg/h |
