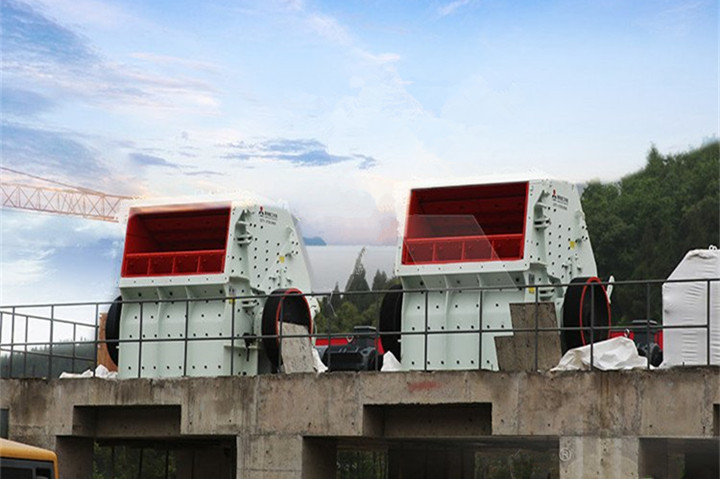

Production Line of Stone Crushing Machine Impact Crusher

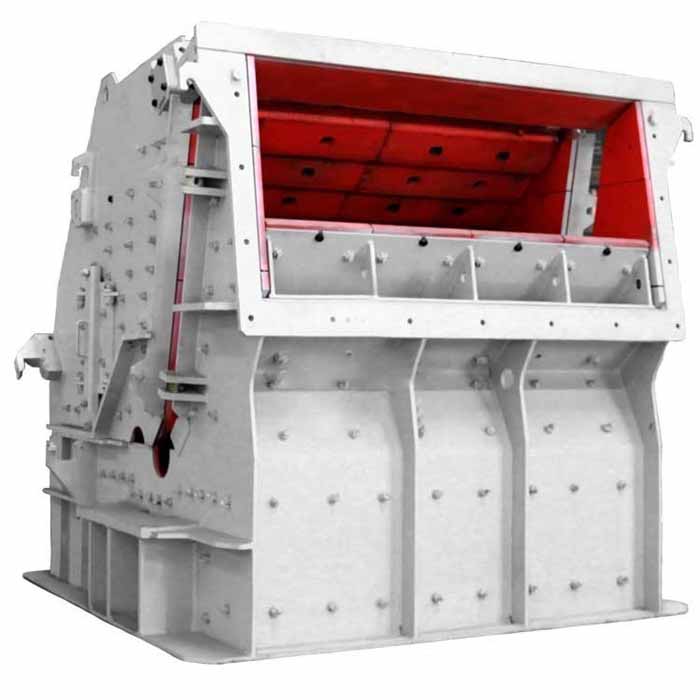

Product Introduction
The impact crusher is an ideal choice for coarse and medium crushing in high capacity crushing production lines. It integrates and applies new scientific research achievements such as high-precision rotors with large Moment of inertia, multi-functional full hydraulic operating systems, and involute crushing chambers, with high comprehensive cost performance.
Working principle
Counterattack is a crushing machine that uses impact energy to crush materials. During operation, the motor drives the rotor to rotate high. When the material enters the action zone of the plate hammer, it is crushed by the high-speed impact of the plate hammer. The broken material is thrown along the tangent direction towards the impact plate installed above the rotor and is broken again. Then, it bounces back from the impact plate to the action zone of the plate hammer and is broken again. This process is repeated until the material is crushed to the required particle size and discharged from the discharge port. Adjusting the gap between the counterattack frame and the rotor can achieve the goal of changing the particle size and shape of the material.
Specification
Model |
Rotor specification(mm) |
Feed port size(mm) |
Feed Lump size(mm) |
Production Capacity(t/h) |
power |
dimension |
CI5X1315 |
1300x1500 |
1540x930 |
≤600 |
250-350 |
250-315 |
2880x2755x2560 |
CI5X1520 |
1500x2000 |
2040×520 |
≤700 |
400-600 |
400-500 |
2995x2790x3090 |
CI5X1415 |
1400x1500 |
1540x1320 |
≤900 |
350-550 |
250-315 |
3390x3475x2790 |
CI5X1620 |
1600×2000 |
2040x1630 |
≤1100 |
500-900 |
400-500 |
3485x3605x3720 |
CI5X2023 |
2000×2300 |
2400x1920 |
≤1300 |
1200-2000 |
1000-1200 |
4890x4330x4765 |
