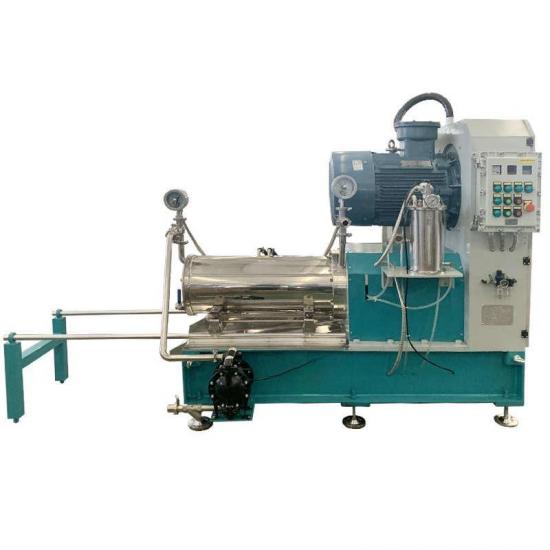

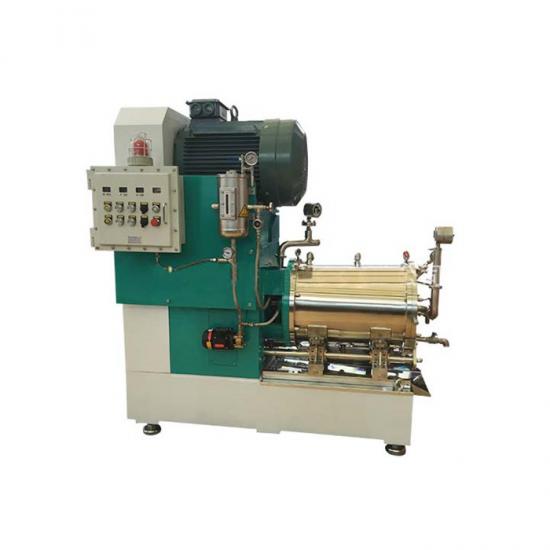

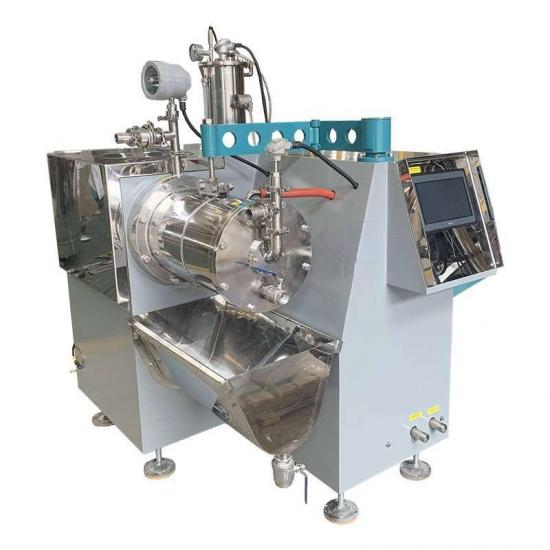

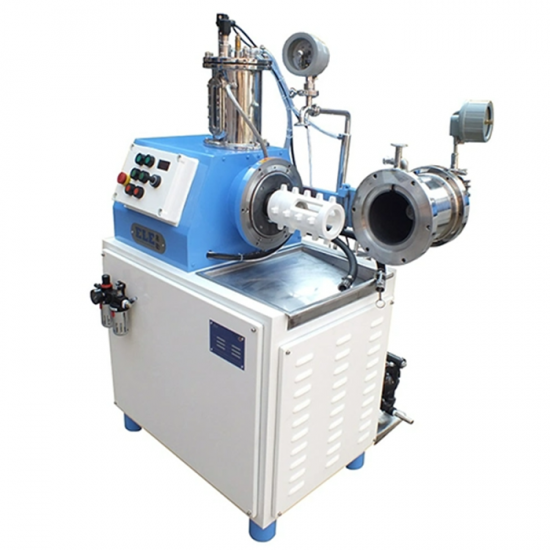

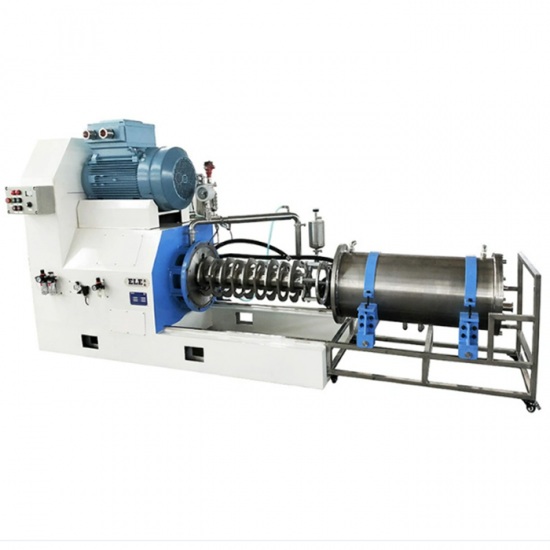

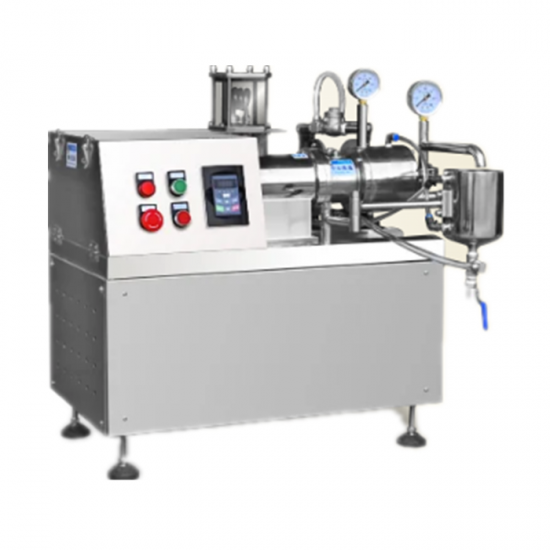

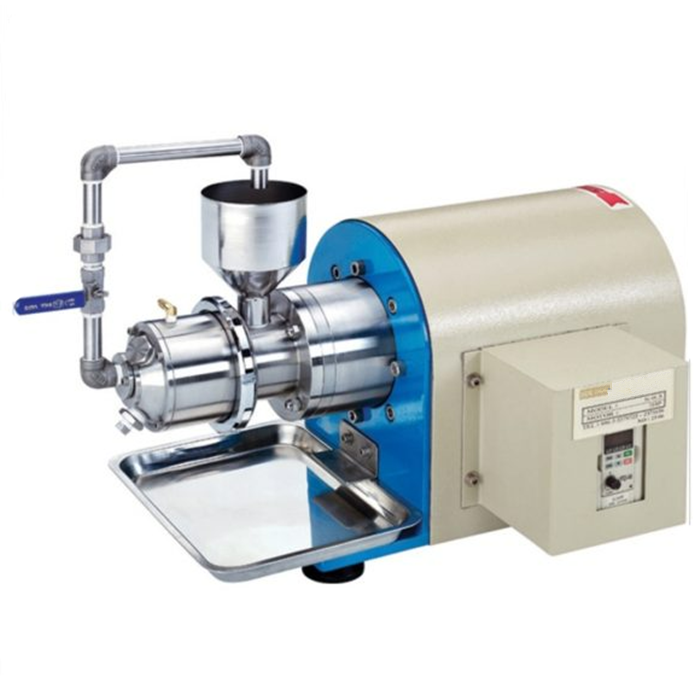

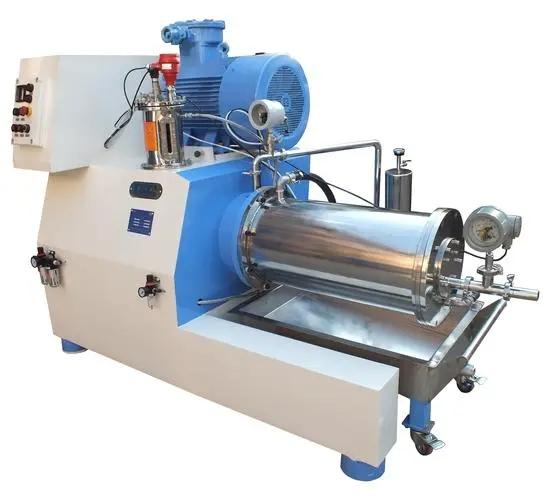

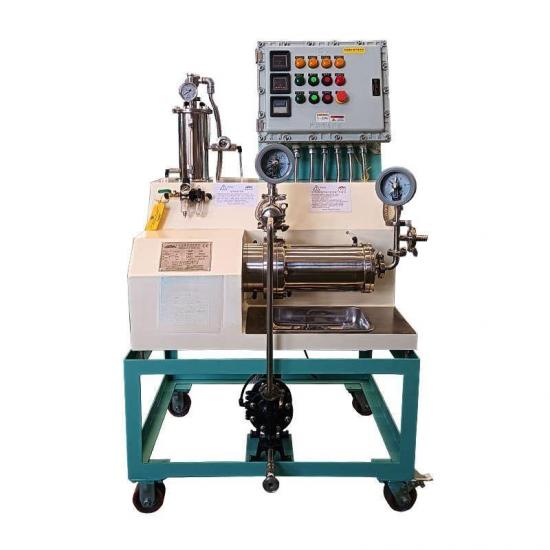

Horizontal Wet Disperser Bead Mill
Product Introduction
Bead Mills are machines for dispersion processing, where solid particles (pigments, fillers) are reduced in size and finely dispersed and wetted out in a liquid phase. Small ceramic, glass or metal beads are agitated inside the mill chamber to aid particle size reduction through impact and energy input while the dispersion is pumped through the mill.
The working principle of bead mill is feed to be processed is pressurized pumped from the bottom of the mill into the milling chamber which is filled with grinding media. .The grinding media is agitated by number of impellers which are fitted on a lengthy drive shaft.
Specification
Model | Motor Powder(HP/Kw) | Grinding Chamber(Volume, L) | Production Volume(L/H) | Cooling Water Consumption(L/H) | Weight(kg) | Dimension L/W/H(mm) |
SM-0.3 | 2/1.5 | 0.3 | 1-20 | 100-250 | 40 | 650/420/450 |
