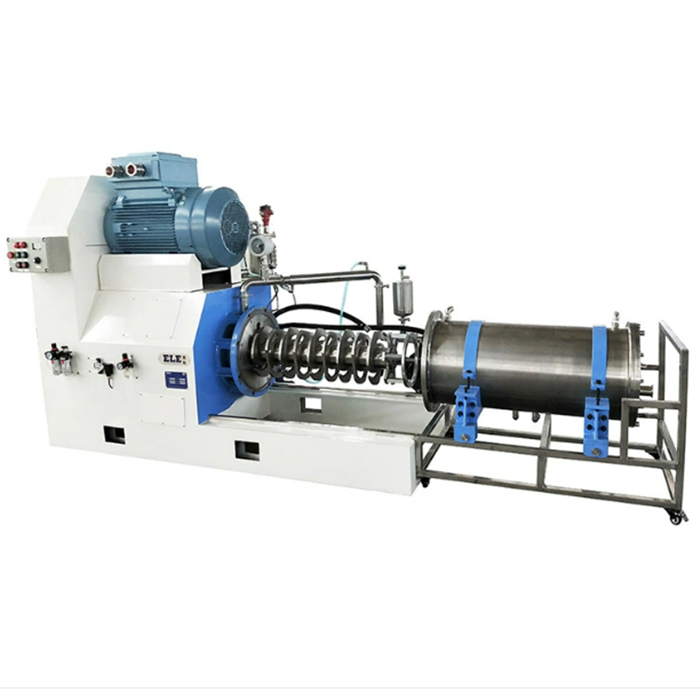

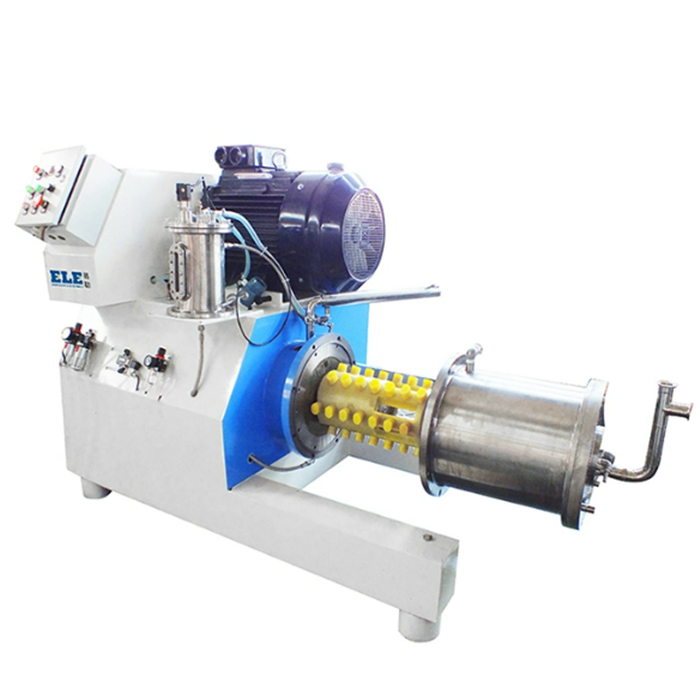

Horizontal Ultrafine Bead Mill
Product Introduction
The grinding chamber of thebeadmill is fixed, and there is a mixing shaft in different ways in the grinding chamber. Small grinding media are used, and the stirring shaft is used to transfer kinetic energy to the medium, causing the material to break. There are vertical or horizontal ball mills, disc and pin mills, and turbine mills. The fineness of grinding can reach 100 nanometers or 50 nanometers.
Features:
1. High abrasive resistance: Materials (zirconia, tungsten carbide, hard alloy etc. ) guarantee working life.
2. Dynamic fence booms: Discharge solve problems of slow discharge and grinding medium getting stuck.
3. German BURGMANN double mechanical end face seal, which can bear more than 10bar pressure.
4. Corrugated cooling system increase cooling area and improve cooling efficiency.
5. Grinding beads small to 0.2mm guarantee superfine grinding/milling.
6. Meet demands of continuous production&different viscosity& fineness.
7. Inner & outer double pins improve high wet grinding/milling efficiency.
8. Ex-proof (optional) & fault alarming.
Application
Paint: decorative paint, car paint, wood paint, floor paint, metal paint, etc
Ink: Oil ink, flexographic ink, offset ink, silk screen ink, UV light fixing ink, digital inkjet ink, etc
Pigments: pigments, dyes, painting pigments, pen fluids, watercolors
Pesticides: Pesticide suspension, SC, EC, EW, ME
Biopharmaceuticals: Algal cell fragmentation, microbial functional materials
Gloves: labor, latex, nitrile gloves
Electronic materials: battery separator alumina, iron phosphate, ceramic slurry, flame retardant.
Nano materials: metal oxides, magnetic materials, papermaking industry, optoelectronic industry.
Specification
| Model | Volume Of Grinding Chamber(L) | Power(KW) | Rotation Speed (rpm) | Capacity(L/H) | Dimensions(mm) | Weight(KG) |
| SM-5 | 5 | 11 | 1500 | 200 | 1300*1050*450 | 650 |
| SM-10 | 10 | 15 | 1500 | 300 | 1600*1450*650 | 980 |
| SM-15 | 15 | 30 | 1500 | 500 | 1600*1450*650 | 1200 |
| SM-20 | 20 | 30 | 1260 | 800 | 1600*1450*650 | 1350 |
| SM-30 | 30 | 55 | 1260 | 1200 | 1650*1550*750 | 2100 |
| SM-50 | 50 | 75 | 980 | 2000 | 1900*1850*850 | 2300 |
