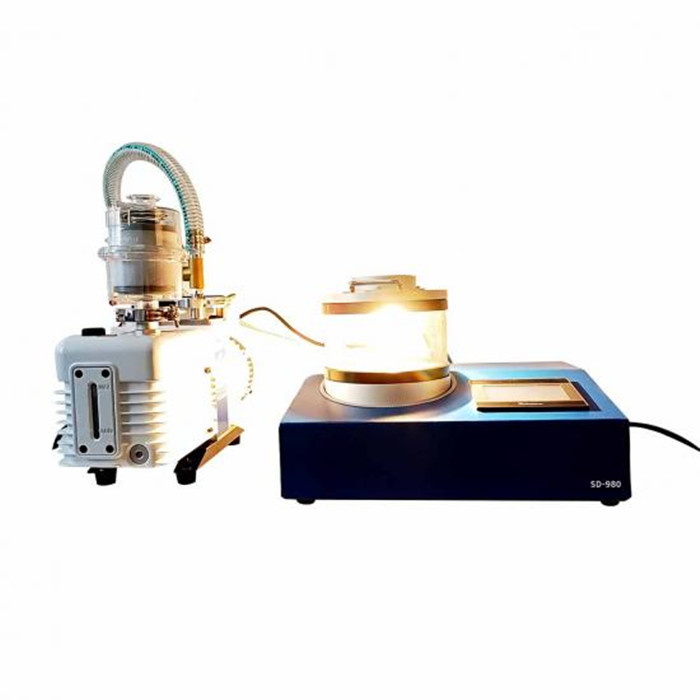

Fully-automated Vacuum Pulsing Thermal Evaporating Carbon Coating Coater for Materials Science

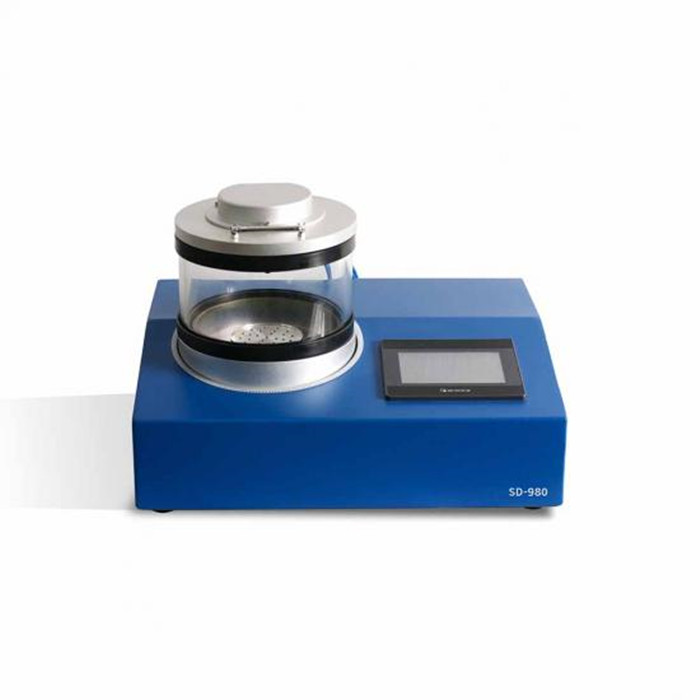

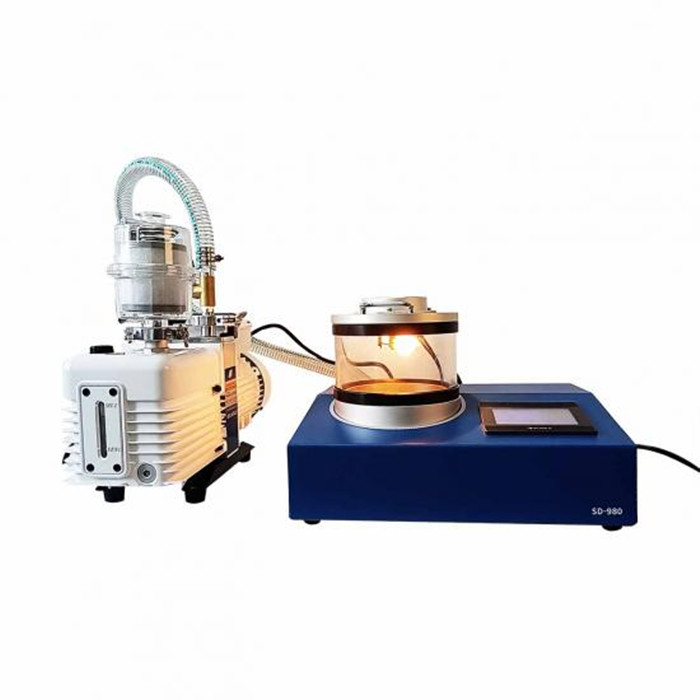

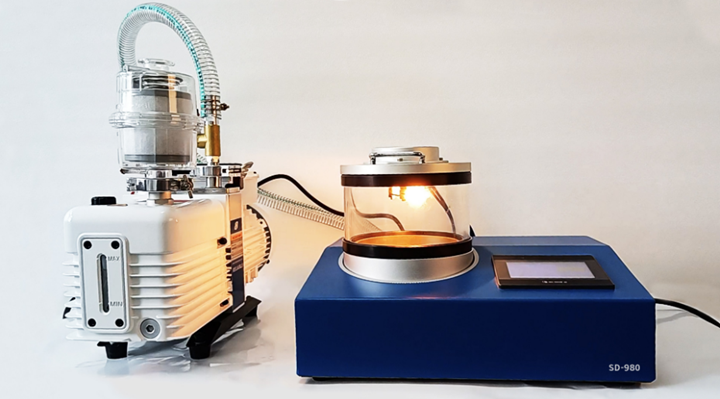

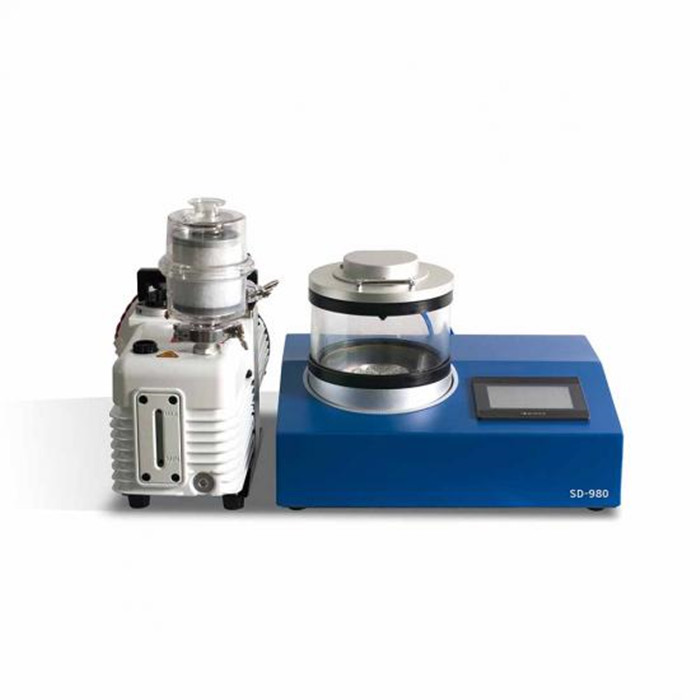

Automatic Pulsing Thermal Evaporation Carbon Coater (SD980 Model) is ideal and designed for lab SEM sample preparation. SD980 Model carbon coater is a fully-automated carbon coater that applies a thin conductive carbon film on a sample surface. Applying this coating to a non-conductive sample is an effective preparation technique for diminishing charge-up electron artifacts for analysis in a SEM. A pulsed mode for protecting samples is also included.

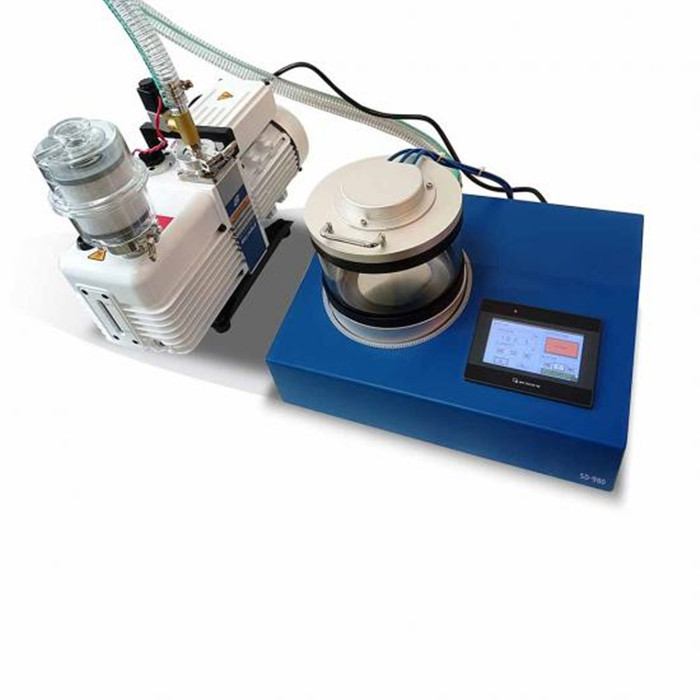

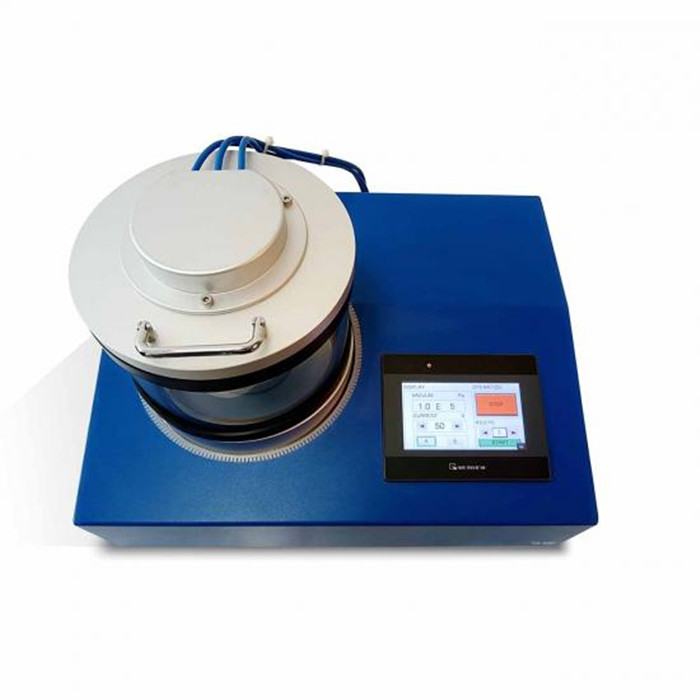

Working vacuum pressure can be achieved quickly when using proper vacuum pump. It is user friendly and easy to operate by Controlling Touch Screen Heating Power (Current) and Pulsing Times (Recipe).
Vacuum pump is included.
Parameter
|
Vacuum pump set |
(Oil required) rotary vacuum pump |
|
Rotary pumping speed |
50 Hz : 8 m³/h (2.2 L/s)/ 60 Hz : 9.6m³/h (2.6 L/s) |
|
Vacuum limit |
2 Pa |
|
Max evaporation current |
80A |
|
Working pressure |
6 Pa - 4 Pa |
|
Vacuuming time |
<5 Min(2 Pa) |
|
Vacuum measure |
Measuring range from atmosphere to 2*10-2mbar |
|
Chamber size |
Φ150*120mm (height) scratch resistant quartz glass |
|
Evaporation target source |
Target material :carbon rope/target source: carbon rope |
|
Operation method |
Instruction Manual |
|
Weight/size |
45kg/390mm length x 310mm wide x 290mm high |
|
Power supply |
AC 110V 60Hz or AC 220V 50Hz |
|
Power consumption |
<2000W |
|
Warranty |
One year limited warranty with lifetime product support |
