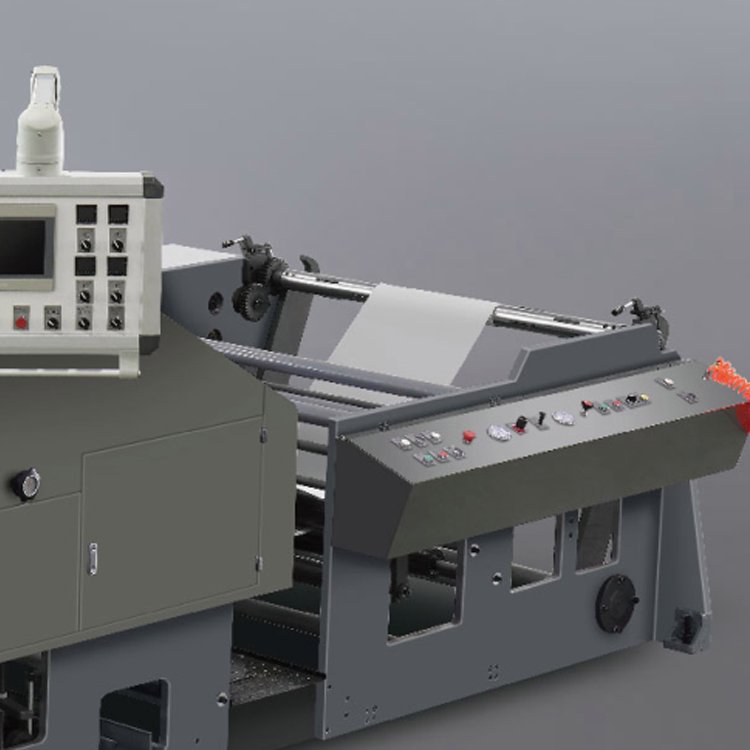

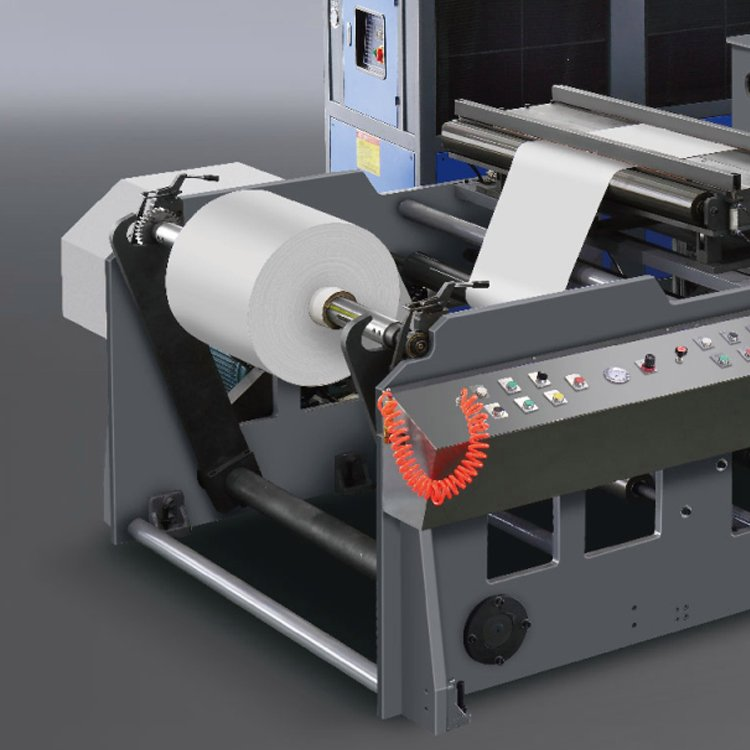

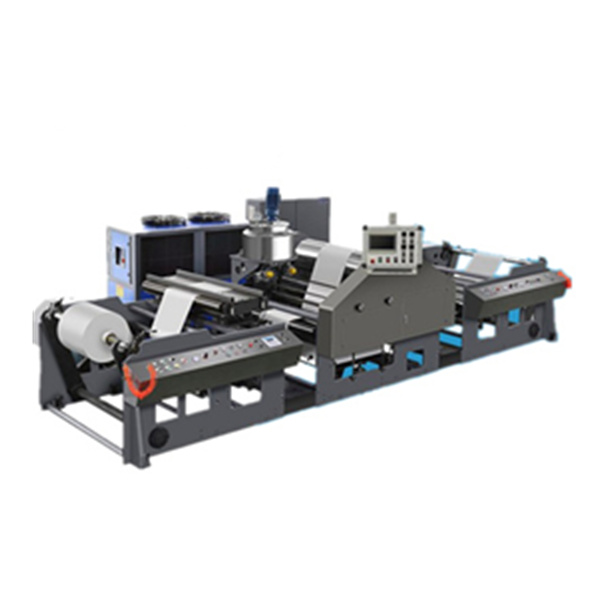

Wax Paraffin Coater Paper Waxen Machine
This machine is suitable for candy paper coating machine,and some food package paper.
this wax coating machine use anlixo roll to supply the wax on paper uniformity.the anliox roll ,ink bucket and blade are all heating. this machine is suitable for food package package, Building moisture proof paper and other productions.
Main Features
1)supply wax and coating use double motor,double inverter synchronos adjust speed
2)wind film smoothly,synchronos line speed
3)wax bucket and blade,anliox roll are all heating
4)use heating anliox roll to supply wax on the paper in limited quantity,let supply wax equality
5)brige type air cooling oven, 5 meters
6)unwinding and rewinding use magnetic powder tension control
7)first unwinding and out of cooling oven use auto rectify.
Specification
Coating Width |
400-2000mm (Can be customized) |
Coating Weigh |
10-200g/m2 |
Coating Speed |
50m/min (Can be customized) |
Unwind Diameter |
1000mm (Can be customized) |
Rewind Diameter |
700mm (Can be customized) |
Correction Device |
2 sets |
Length |
5000mm |
Height |
1400mm |
