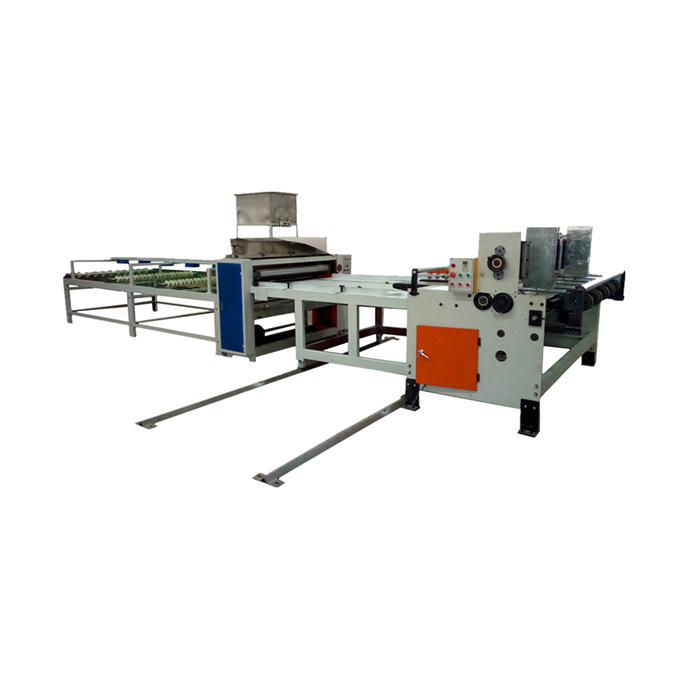

Corrugated Cardboard Waxing Machine Paper Composite Max Machine
Equipment introduction
This is a device for gluing or waxing paper and film.
Main process:
Unwinding → EPC → preheating → static elimination → drenching → oven → cooling → paper storage → EPC cutting → material collection.
Specification
|
Effective drenching width |
620mm |
|
Roll surface width |
720mm |
|
Maximum unwinding diameter |
Ø 800mm (weight within 350KG) |
|
Maximum receiving length and width |
620 * 630 * 1150 (weight within 500KG) |
|
Applicable paper tube inner diameter |
Ø 76mm |
|
Drying and heating method |
Electric heating |
|
Oven temperature control |
Up to 150℃(referring to the middle section temperature of the oven)±5℃ |
|
The edge of the winding is neat |
±2mm (under stable speed) |
|
Total power |
75KW |
|
Running speed |
60M/min (depending on the coating material and coating thickness) |
|
Wax pouring accuracy |
Within±0.025mm in the longitudinal direction; Horizontal±0.025 or less) |
|
Tension control accuracy |
Within±0.3KG |
|
Waxing thickness |
Curtain type 0.08-0.14mm (wet wax) |
|
Transition roller outside the oven |
100mm steel roller with hard surface treatment. |
