PEVA/EVA Extrusion Die Head Control High Precision Film Casting Machine Production Lline Casting Machine
Product introduction

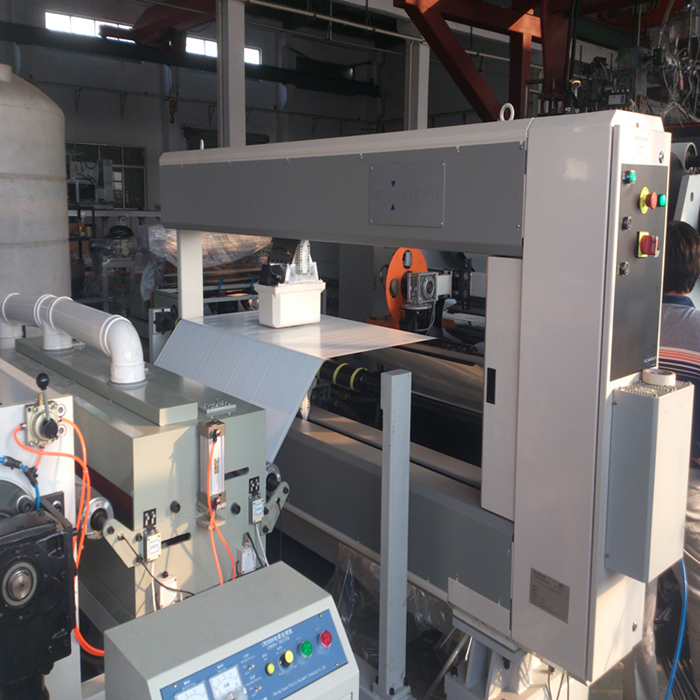

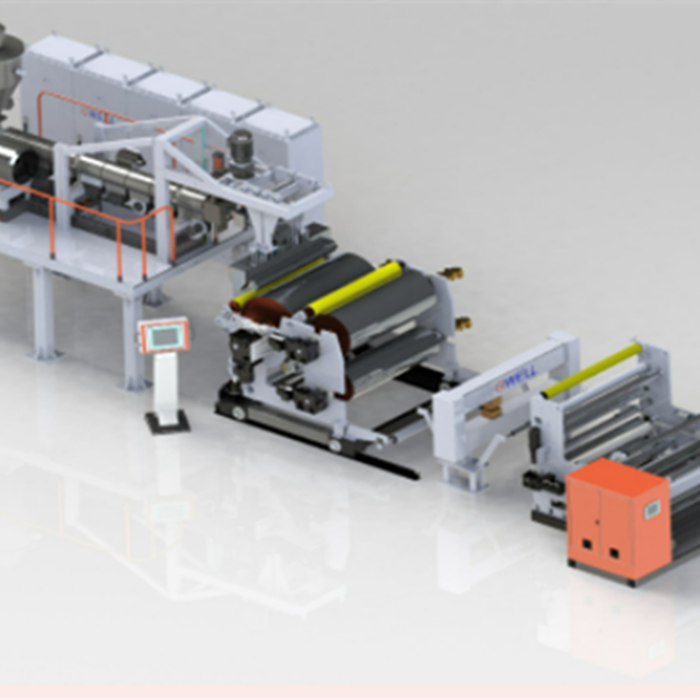

This unit stone on polyethylene (PE) and VEA rubber mixed material processing of casting film equipment, can produce PEVA, EVA flat film or embossed film, can also produce high transparent EVA film, the equipment is strong applicability. The machine extrusion die head control precision is high, extruder performance is superior, film forming effect is excellent, high output, low energy consumption. According to customer needs, different configurations can be used, such as adding automatic mixing system, online thickness measuring instrument, online defect detection, to meet customer's personalized needs, the whole machine is controlled by PLC program, love to use the central touch screen operation, realize the automatic production process. At the same time, we have a variety of film embossing styles for customers to choose, or according to the customer's specific embossing styles.
Product characteristics
- The width of the product is customized according to customer demand, the widest can reach 4000mm

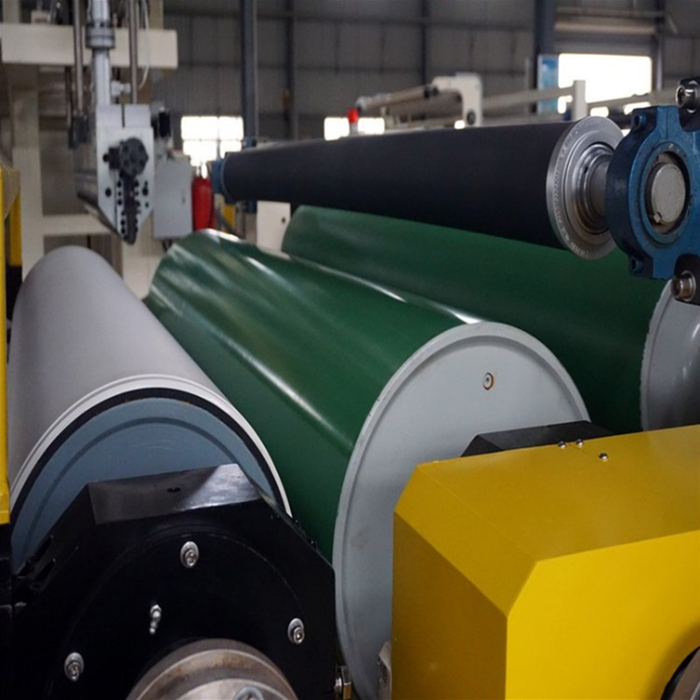

- Simple and quick to replace the roller
- Film thickness uniformity is good
- edge material online recycling
- Optional installation of unnecessary winding device
Product use
- Stationery, bag, shower curtain, tablecloth
- Gloves, umbrella, raincoat
- Medical, automobile, etc
Specification
|
Can produce film thickness |
0.02-0.15mm |
|
Line production speed |
150-250m/min |
|
Die head production width |
3300mm |
|
Film production net width |
3000mm |
|
Onboard system |
Siemens PLC (enables remote online diagnosis) |
