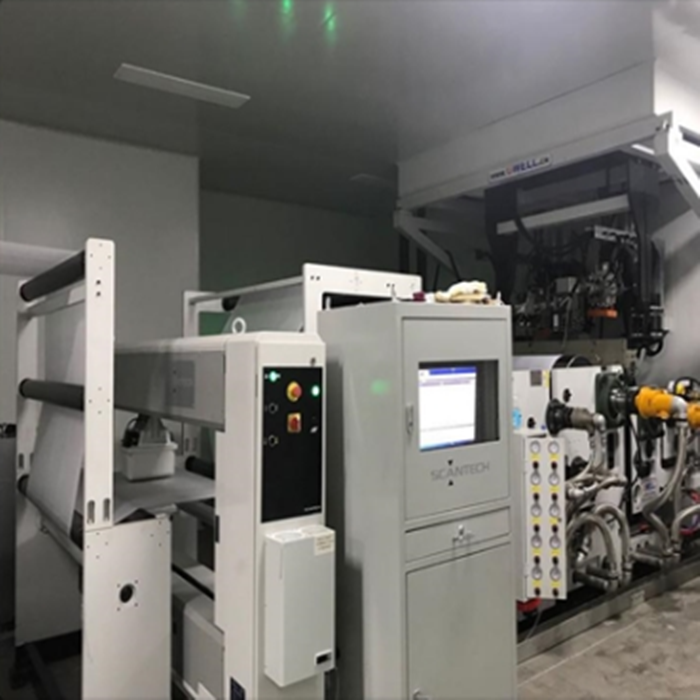

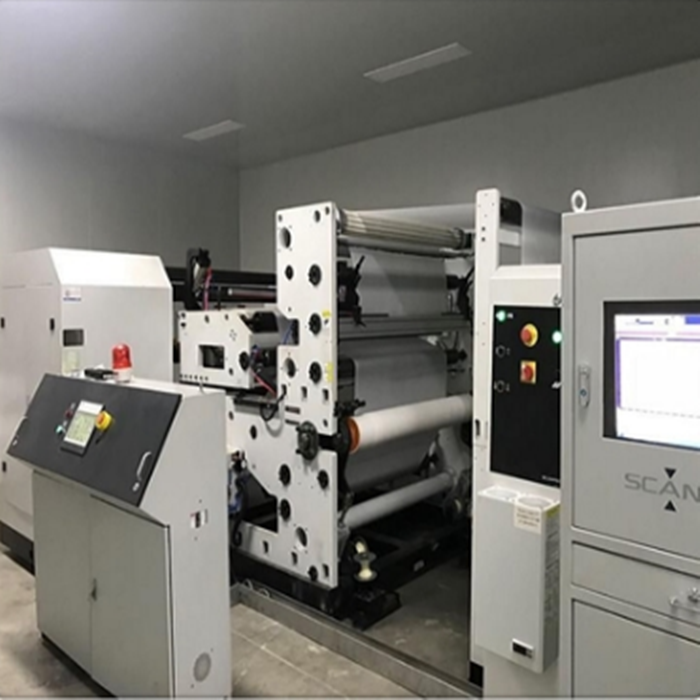

ETFE/FEP Casting Film Extrusion Line Fluorine Material Film Machinery Manufacturing

ETFE film equipment adopts extruder made of special high temperature and corrosion resistant steel to achieve stable extrusion of fluorine plastics.

Please send your inquiry to joyhuang@simymachine.com

  • Item No.:

    SIMY-ETFE
  • Lead Time:

    10 days
  • Payment:

    Credit Card, Paypal, T/T , Western Union, LC
  • Warranty Period:

    1 year
  • Customizable:

    Yes
  • Product Detail

ETFE/FEP Casting Film Extrusion Line Fluorine Material Film Machinery Manufacturing


Product description

1, Extruder made of special high temperature and corrosion resistant steel to achieve stable extrusion of fluorine plastics;

2, according to the particularity of fluorine material, design screw structure, die head structure, with special molding, winding and other processes, to achieve the rationalization of fluorine plastic products, industrial, large-scale production;

3, the machine configuration is high, the design is practical and reasonable, the machine chain control, convenient and stable;

4, the production line adopts PLC overall control, only one person can easily control, the key parts disassembly and replacement is convenient, humanized, reserved remote control port, can realize synchronous monitoring in different places around the world.

ETFE film features

1, good light transmission;

2, Although ETFE films are elastic, they still have structural resistance; 3, durable;

4, ETFE film has about 70% acoustic transmission;

5, easy to recycle, ETFE film is recyclable material, can be reused to produce new film material, or separated impurities after the production of other ETFE products.

ETFE film use

(1) Water treatment industry: removal of suspended solids and tiny particles in water;

(2) Electronics industry: semiconductor industry ultra-pure water, integrated circuit cleaning water terminal treatment;

(3) Food industry: yeast and mold removal in wine and drinks, clarification and filtration of fruit juice;

(4) Chemical industry: filtration and clarification of various chemicals.


Specification

Host type

Single screw extruder

Single screw double machine co-extrusion

Type of an artifact

Single layer structure

A;A/B; A/B/Astructure

Folding Width of Products

1250-2200mm

1250-2200mm

Thickness of Products

0.02-0.1mm

0.02-0.1mm

Extruding Output

120-180kg/h

140-220kg/h

Linear speed

30m/min

40m/min
