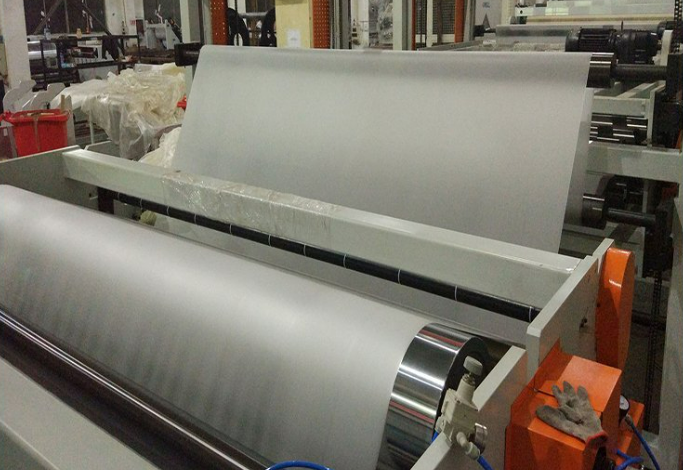

EVA Photovoltaic Film Extrusion Machine POE Packaging Adhesive Film Production Equipment
Product introduce
EVA/POE solar adhesive film is used for solar cell packaging. After lamination and curing, it is bonded and sealed, playing a high transmittance, preventing water vapor penetration, high and low temperature resistance, and UV resistance role in battery modules, ensuring stable and efficient use of battery modules. It is a durable and reliable packaging material.
Product characteristics
(1) The salivation extruder adopts a single screw extruder, and the screw barrel constant temperature circulating water cooling system solves the technical difficulties of EVA/POE plasticization and non crosslinking.
(2) The roller body adopts double-sided embossing and solves the technical difficulties of adhesive film sticking to the roller.
(3) The cooling part adopts cooling rollers and stress relieving cooling beds to ensure smooth operation and full shaping of the adhesive film, ensuring a shrinkage rate of less than 3%.
(4) The entire line adopts PLC fully automatic control to achieve human-machine interface operation.
(5) The production line is equipped with an online quality monitoring and control system to ensure product qualification rate.
(6) Patented design micro tension winding machine, with a production line speed of up to 18m/min.
