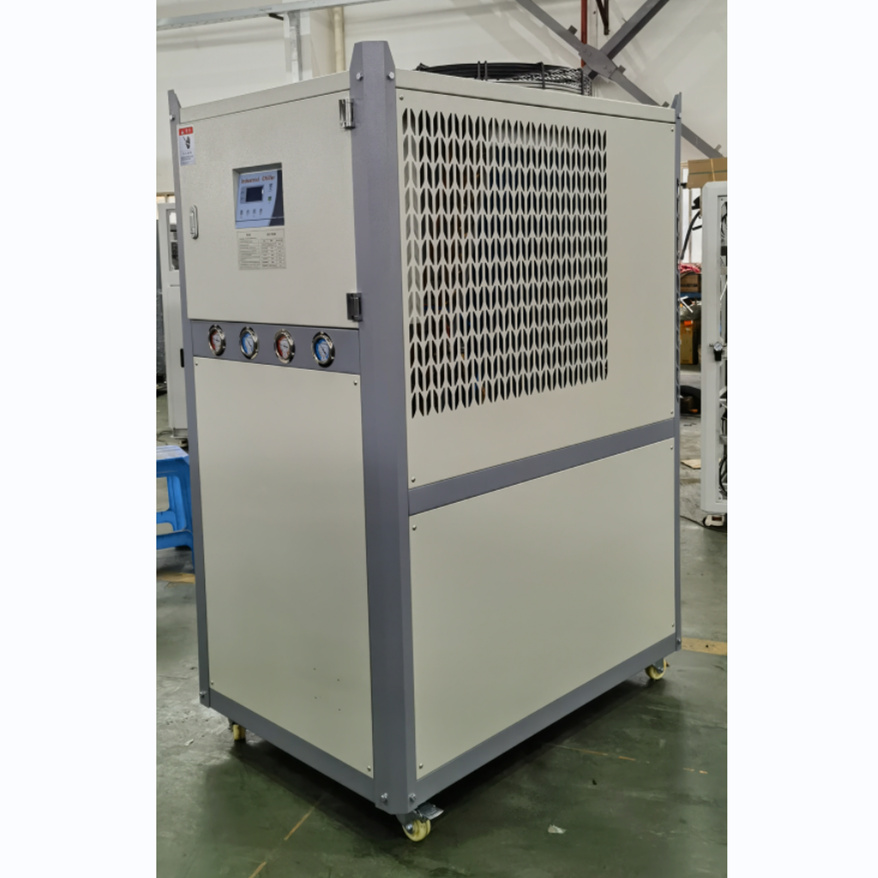

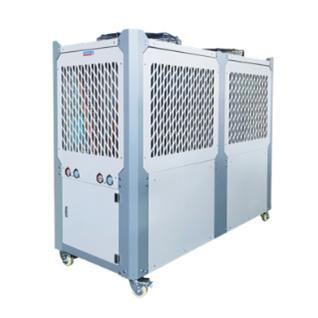

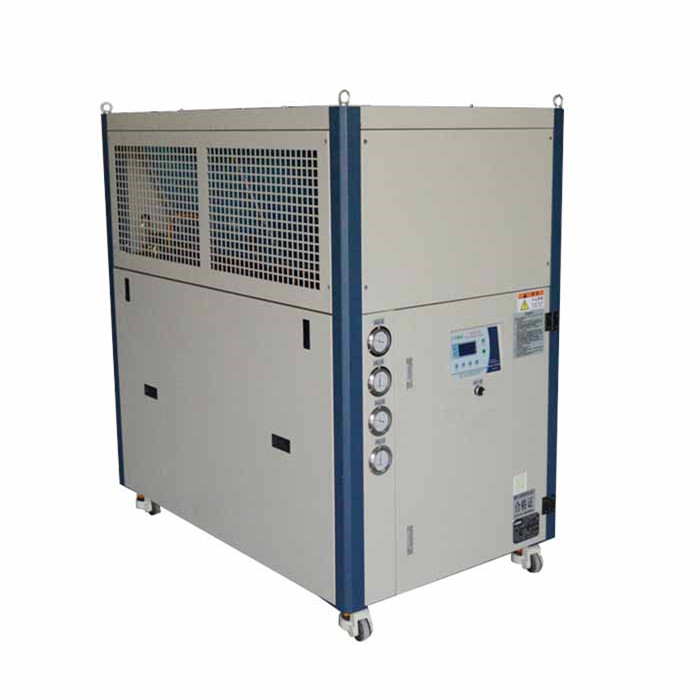

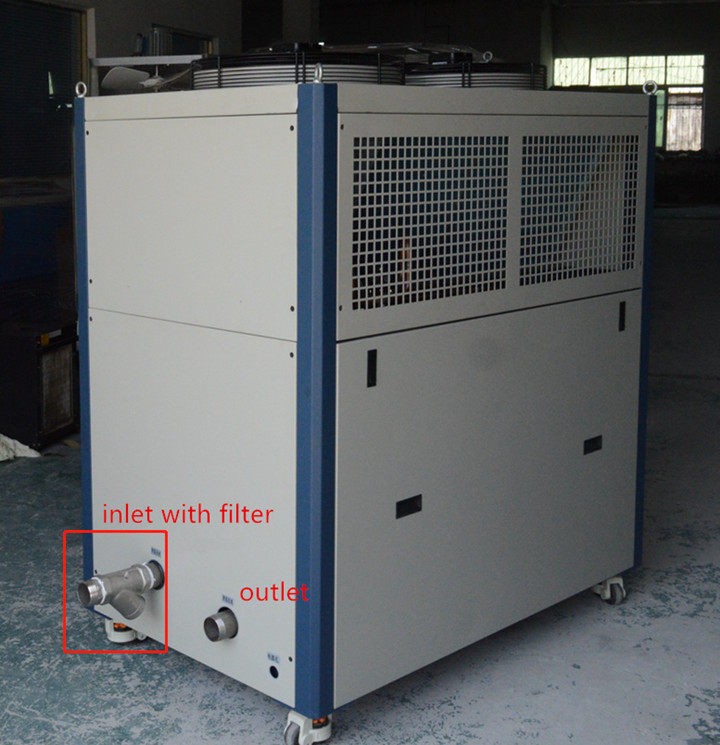

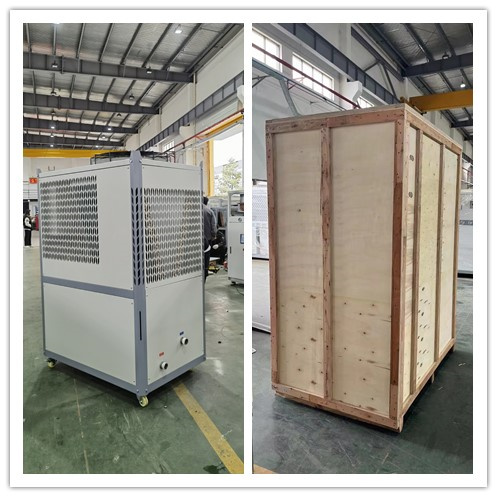

Low Temperature Air-cooled Scroll Chiller with Filter
Working principle
It is configured for water cooling of production equipment. A cooling water system in which water is used as a cooling medium and is recycled. After cold water flows through the production equipment that needs to be cooled (often called heat exchange equipment, such as heat exchanger, condenser, reactor), the temperature rises. If it is discharged immediately, the cold water is only used once (called DC cooling water system). The temperature of the cold water flowing through the cooling equipment is reduced, and the water temperature can be pumped back to the production equipment for use again. The amount of cold water is greatly reduced, which can often save more than 95%. Cooling water accounts for about 70% of industrial water consumption, so circulating water chillers (circulating cooling water systems) play a role in saving a lot of industrial water.
The air-cooled circulating water refrigerator uses shell tube evaporator to make water and refrigerant heat exchange. The refrigerant system absorbs the heat load in the water to cool the water and produce cold water. The heat is brought to the finned condenser through the compressor, and then the heat is lost to the outside air (wind cooling and cooling) by the cooling fan, which contains water tank and water pump, without cooling tower heat dissipation. Easy to install and move.
Specification
Technical Parameters of Low Temperature Air - cooled box unit
Model
KD-10AHD
KD-15AHD
KD-20AHD
KD-25AHD
KD-30AHD
KD-40AHD
Refrigerating capacity(Kw)
-45℃
16
26
30
39
45
68
-55℃
9.6
15.6
18
30.8
35.6
53.7
-60℃
7.6
11.7
13.5
17.6
20
30.6
Rated power of whole machine(KW)
19.55
27.75
39
46.6
54.4
79
Input power
3PH-380/50Hz
Total current (A)
35
50
75
90
105
150
Low temp stage
Compressor
Form
Semi-enclosed piston type
Rated power
(KW)
7.5
11.25
15
18.75
22.5
30
Refrigerant
R23
Evaporator
Form
Plate-type
Refrigerant
Ethanol
Carrier coolant flow rate
(m³/h)
4
6.7
7.7
10
11.6
17.5
Condenser
Form
Plate-type
High temp stage
Compressor
Form
Semi-enclosed piston type
Semi-enclosed screw type
Rated power(KW)
11.25
15
22.5
26.25
37.5
45
Refrigerant
R22/R404a
Evaporator
Form
Low-temperature condenser
Condenser
Form
High efficiency copper casing fin + low noise external rotor fan
Air Flow(m³/h)
15000
20000
30000
35000
50000
60000
Safety protection
Compressor overheat protection, high and low pressure protection, overtemperature protection, flow protection
Phase sequence/phase loss protection, exhaust overheat protection, and antifreeze protection
Dimension
L(mm)
1261
2000
2604
2523
2523
2100
W(mm)
864
854
904
954
954
1925
H(mm)
1921
1608
1915
2024
2024
1990
Weight
KG
550
650
800
800
950
1250
Nominal cooling capacity: ambient temperature 35 ℃, inlet and outlet temperature of refrigerant -40/-45 ℃. The refrigerant is ethanol
