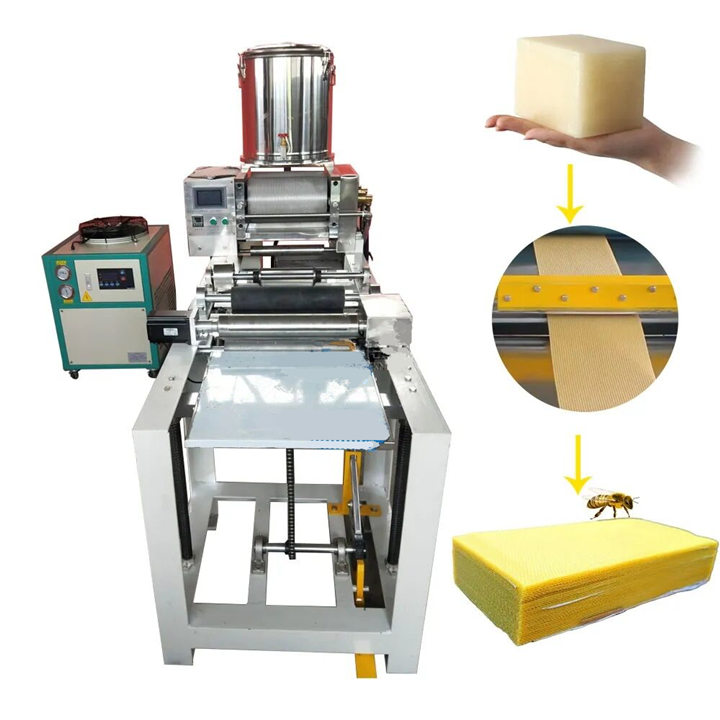

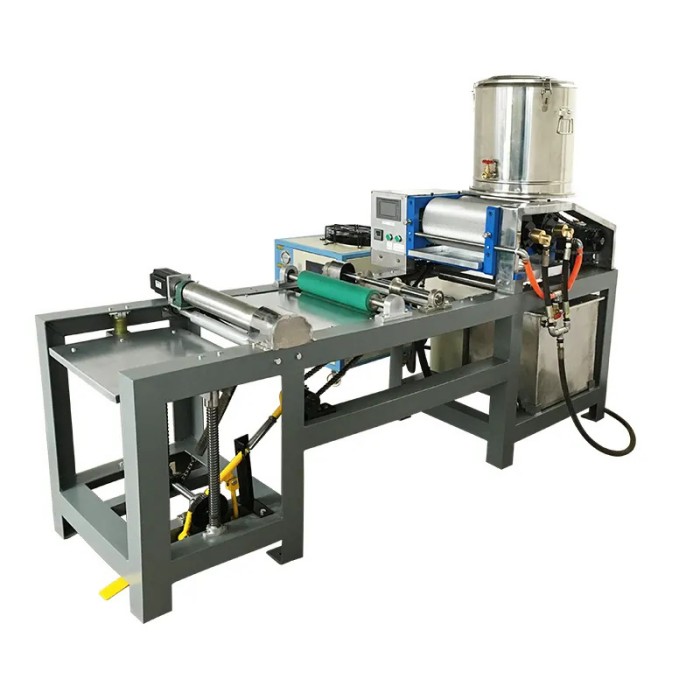

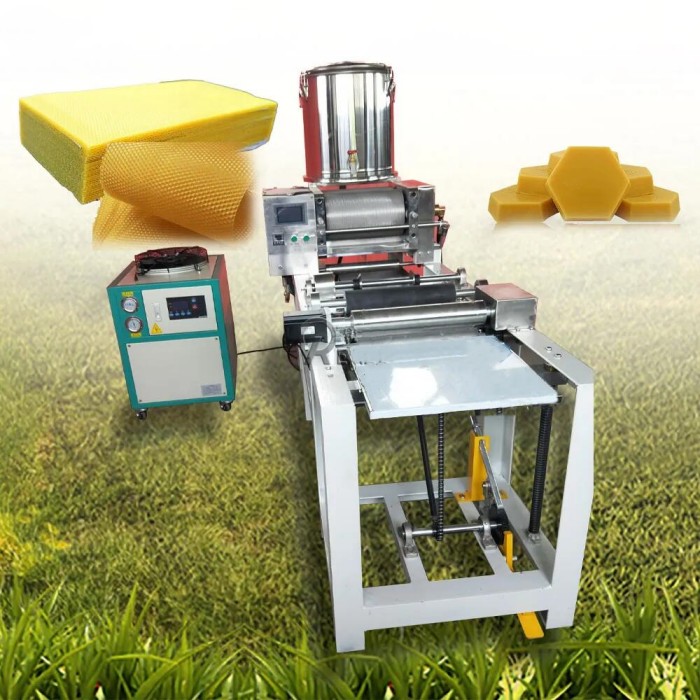

Fully Automatic Beekeeping Beeswax Foundation Machine
1.High quality aluminum alloy precision manufacturing, high hardness, easy to take off the roller, low noise, durable.
2.Can
be electric, manual, easy to operate, calender made of stainless steel,
engraved with antiskid lines,
not stick machine, thick-even.
3.Can be customized.
4.The shelves are cast iron material; Roller is aluminum alloy material; Calender.
Specification
|
Roller size |
205*350mm |
|
Cell size |
5.4mm(4.9mm or 5.1mm or as request) |
|
Water Cooler Tank |
Keep cool the roller and not need external water more |
|
Thermometer |
Water and wax temperature are continuously under controlled by digital thermometer |
|
Dimension of foundation sheet |
Desired width is adjusted by moving the round knives as required and the lenght is adjusted by digital counter sensor on control pannel. |
|
Power Supply |
380V.3KW |
|
Rorate speed |
3r/min |
|
Lifting Table |
The foundation sheets are stacked on a lifting table |
|
Warranty |
1 year for any damage and technical unless caused by operating errors or carelessness or negligence |
|
Size of machine |
2800*950*900mm |
|
Weight of machine |
900kg |
