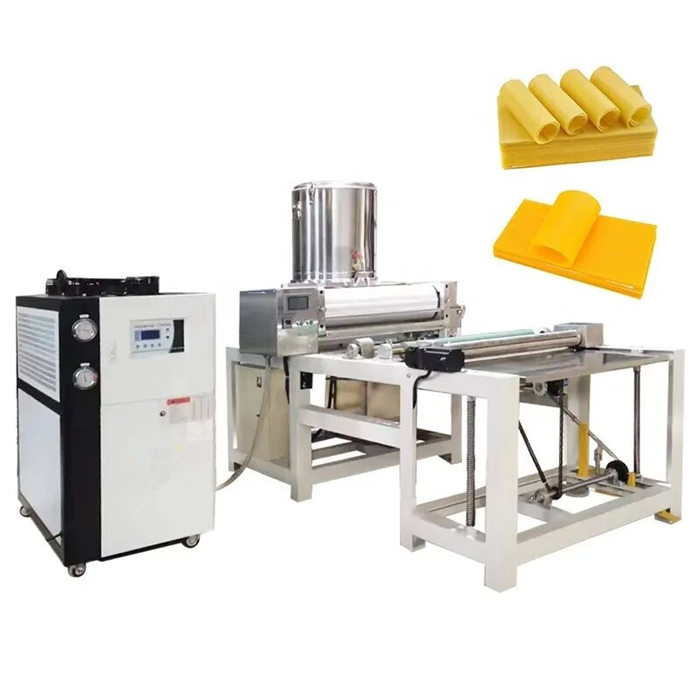

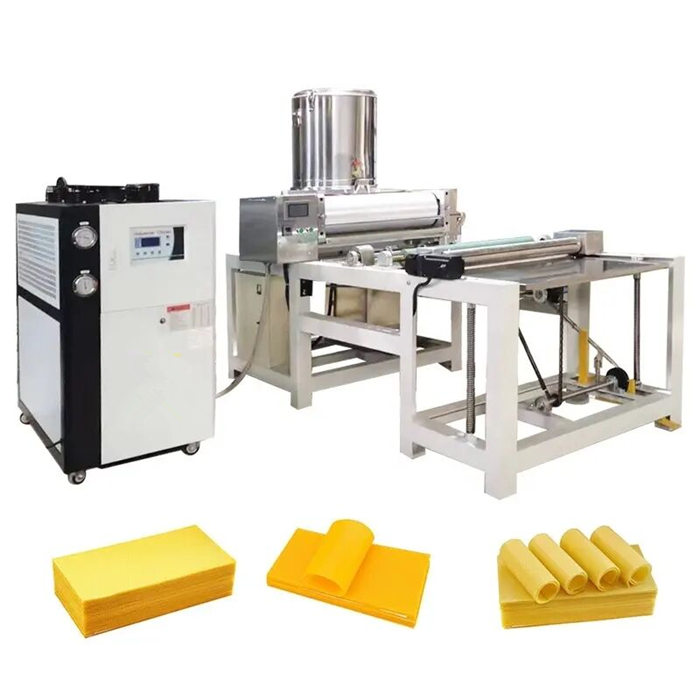

201 Stainless Steel Automatic Beeswax Foundation Embossing Machine
Wax nest base is made by pressing beeswax as the main raw material through the nest base machine, including the Chinese honeycomb base and the Italian honeycomb base, which are used by Chinese bees and western bees respectively.The nest spleen produced by using the nest base is neat and strong, which is conducive to the feeding and management of bee colonies.
This product is made of stainless steel, health and easy to use, so that the nest honey more health.

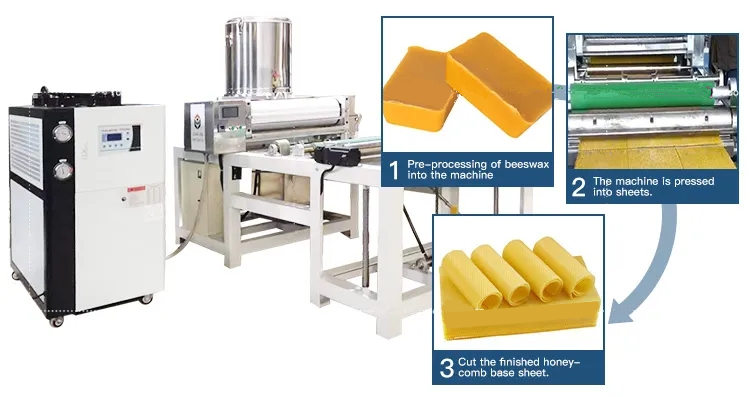

Use procedure
1. Put the beeswax raw material into the machine for heating and pretreatment.
2. The machine is laminated.
3. Cut finished honeycomb substrate.
Specification
|
Model
|
UDCC-350
|
UDCC-750
|
|
Size of beeswax
|
415*195mm（Can Adjust )
|
415*195mm（Can adjust )
|
|
Each Piece of Weight
|
About 50 Gram
|
About 50 Gram
|
|
Each Piece of Thickness
|
About2mm
|
About2mm
|
|
Barrel Volume
|
80L
|
80L
|
|
Honeycomb Size
|
5.1mm(Support customization)
|
5.1mm(Support customization)
|
|
Honeycomb Roller Dia
|
200mm
|
200mm
|
|
Honeycomb Roller Length
|
350mm
|
750mm
|
|
Power /Voltage
|
7.5Kw/220V
|
7.5Kw/380V
|
|
Capacity
|
1Pieces/About 10 Seconds
|
3Pieces/About 10 Seconds
|
|
Machine Dimension
|
2600*1200*1200mm
|
2400*1300*1300mm
|
