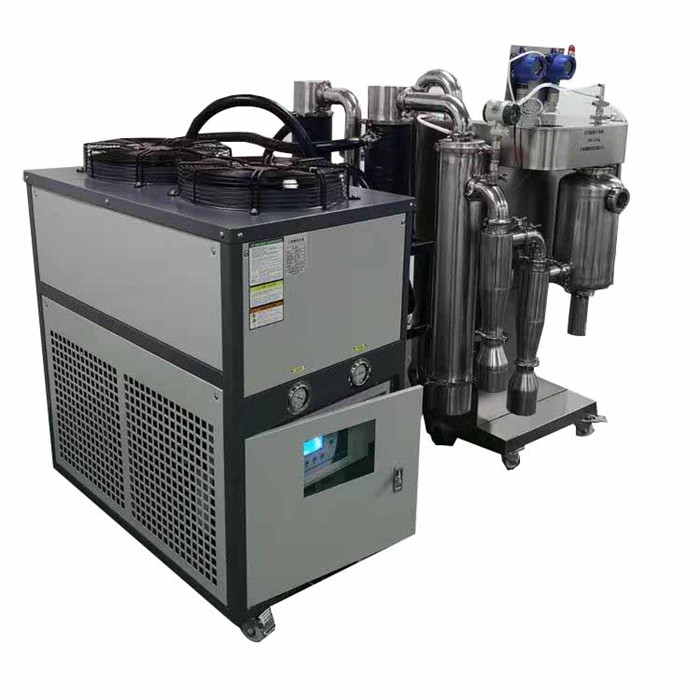

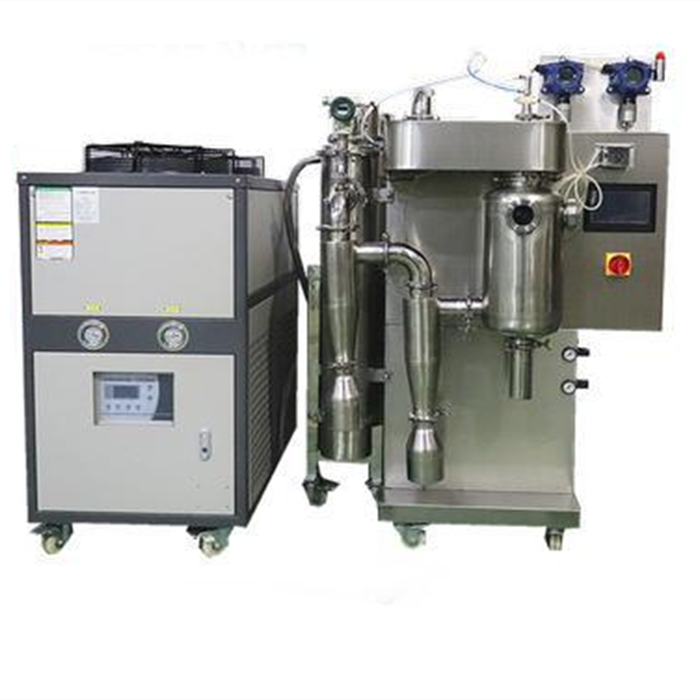

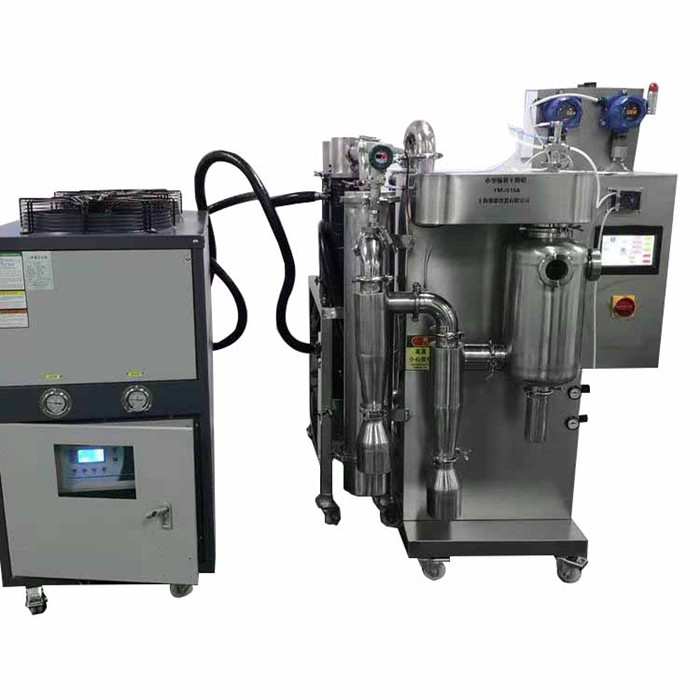

Explosion-Proof Organic Closed Solvent Small Spray Dryer Laboratory Dryer
Features
1. SIMY-015A organic solvent spray dryer can solve the problem of difficult drying of materials containing organic solvents in spray drying. Generally, organic solvents are inflammable and explosive.
2. The SIMY-015A organic solvent spray dryer can solve the problem of drying easily oxidized materials in the production of raw materials. This technology utilizes the oxidation resistance of inert gas to dry and transport the materials in the environment of oxidation resistance of closed circuit circulation system, which is isolated from oxygen to ensure the quality of drying production of easily oxidized materials.
3. SIMY-015A organic solvent spray dryer can solve the problem of toxic gas pollution caused by the production of some raw materials. Some materials or organic solvents will produce toxic gases when gasification.
4. SIMY-015A organic solvent spray dryer easy to operate: the control system adopts PLC automatic control, one-button startup, color touch screen operation, experimental parameters such as the amount of feed, air inlet temperature, air volume, needle frequency can be changed according to the needs of the experiment, convenient for users to use;
5. Stable operation of the SIMY-015A organic solvent spray dryer: The core components of the equipment, such as touch screen, fan, heater and control system, are imported to ensure the stability and reliability of the equipment operation;
6. SIMY-015A organic solvent spray dryer convenient material preparation: small materials only need 20-30 ml, which is conducive to sample processing and material preparation, but the processing capacity can reach 2000ml/H, a large number of materials processing is also very fast;
7. SIMY-015A organic solvent spray dryer using concentric spray head: during the experiment, the atomization is not eccentric, will not spray to the bottle wall and affect the recovery rate, the spray head can move up and down to change the atomization position, to improve the spray drying effect;
8. Temperature protection: at the end of the experiment, the temperature of the heater is extremely high, and the fan needs to continue to work to reduce the internal temperature to ensure the safety of the equipment. The program of SIMY-015A organic solvent spray dryer can automatically control the operation of the fan, and even if the operator makes mistakes, the fan cannot be turned off.
9. The fan durability: the wind is blown out by the positive pressure of the fan, in the same direction as the material, all materials are not in contact with the fan, the fan will not be polluted by any, durable, and the fan is made of corrosion resistant material, to ensure that it will not be corroded by organic solvent steam.
Advantage
Spray drying of flammable organic solvents has been difficult and prohibited due to the potential flammable hazard. However, spray drying or granulation of organic solvents is urgently needed in many important new technology fields. In response to this challenge, Shanghai Yuming successfully launched a laboratory closed spray dryer suitable for organic solvent drying. For the current organic solvents used in most laboratories, SIMY-015A organic solvent spray drying function is safe, effective and thorough drying.
Specification
|
Screen operation |
Seven inch color touch screen operation control, Chinese and English operation interface |
|
Charging rate |
1000mL/H～2000ml/h |
|
Color touch screen parameter display |
Air inlet temperature/air outlet temperature/peristaltic pump speed (control material flow)/oxygen concentration |
|
Atomizing spray head |
The concentric spray head ensures that no eccentricity will cause the spray to one side of the bottle wall when atomizing. The spray head can be moved up and down after installation to facilitate the adjustment of the atomizing position and improve the spray drying effect. |
|
The whole system is in a closed state, and the oxygen concentration is monitored online. Once the oxygen concentration in the system is below 90%, the system will automatically alarm |
|
|
Nozzle diameter |
0.5mm0.75mm 1.0mm 1.5mm 2mm optional, standard with 1.0, and can be customized according to customer requirements, suitable for all kinds of materials and different dusting diameter requirements |
|
Inlet air temperature control |
60℃～250℃ |
|
Timely control PID constant temperature control technology, heating temperature control accuracy: ±1℃ |
|
|
Nitrogen cycle system and solvent online recovery system |
|
|
Optional low temperature cooling circulation pump for low boiling point organic solution |
|
Configuration
|
Type |
SIMY-015A |
|
Voltage |
380V,50-60Hz (low-temperature cooling circulating pump 380V) |
|
Low air outlet temperature |
60 ° C |
|
Drying capacity |
2000ml/h |
|
Fan |
Explosion-proof fan0-330 m/h |
|
High inlet air temperature |
250℃ |
|
Temperature control accuracy |
＋1℃ |
|
Nozzle |
Standard 1.0mm (0.5/0.75/1.5/2.0mm optional, and can be customized) |
|
Spray head type |
concentric spray head, two fluid |
|
The particle size after drying |
1-25m |
|
Drying time |
1.0-1.5 h |
|
Operation mode |
Automatic/manual |
|
Rated material handling capacity |
2000ml/hr |
|
Small material handling capacity |
Small quantity 50ml |
|
Drying chamber |
SUS304 stainless steel |
|
Grade 3 cyclone separator material |
SUS304 stainless steel |
|
Level 3 collection bottle material |
SUS304 stainless steel |
|
Frame material |
SUS304 stainless steel |
|
Sealing ring material |
Silicone |
|
Dry air source |
N2 (for organic solvent)or compressed air (for aqueous solution) |
|
Size |
800*950*1350mm |
|
Touch screen |
Seven-inch touch screen with USB connection |
|
Thermal protection |
Including heater thermal protection function |
|
Nitrogen circulation system |
Have |
|
Condenser |
Two-way condensation |
|
High efficiency filtration system |
Have |
|
Nitrogen gauge (with cue light) |
1 |
|
Oxygen meter |
1 |
|
Pressure gauge |
1 |
|
Stainless steel drying chamber |
1 |
|
Stainless steel cyclone separator |
1 |
|
Stainless steel sample collection bottle |
3 |
|
Stainless steel sample collection tube |
3 |
|
Silicone tube for feeding 6mm |
2 meters |
|
Spray chamber 316 material |
1 suit |
|
Stainless steel clamp |
1 suit |
