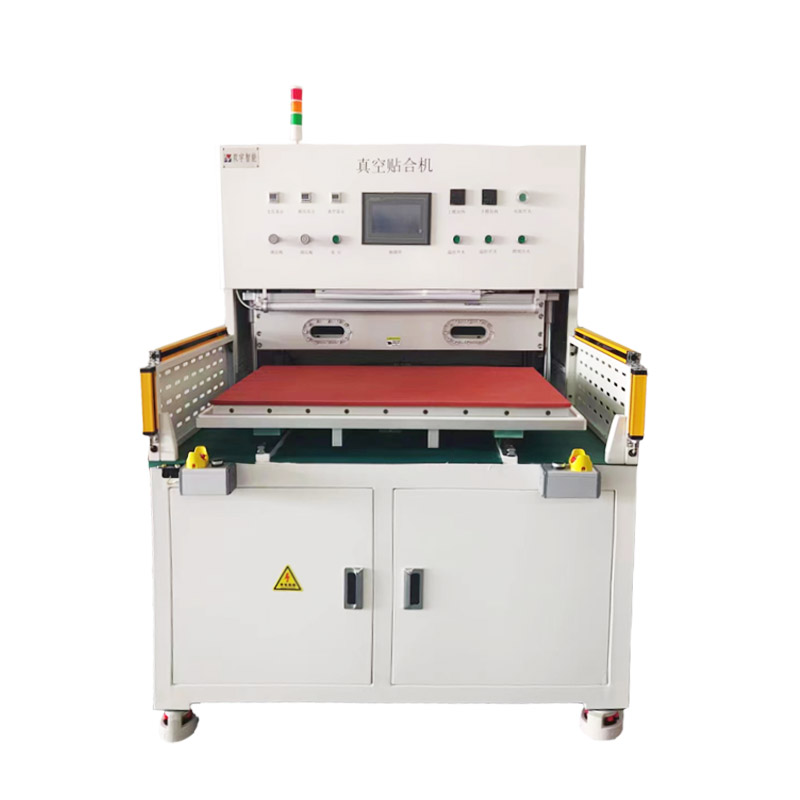

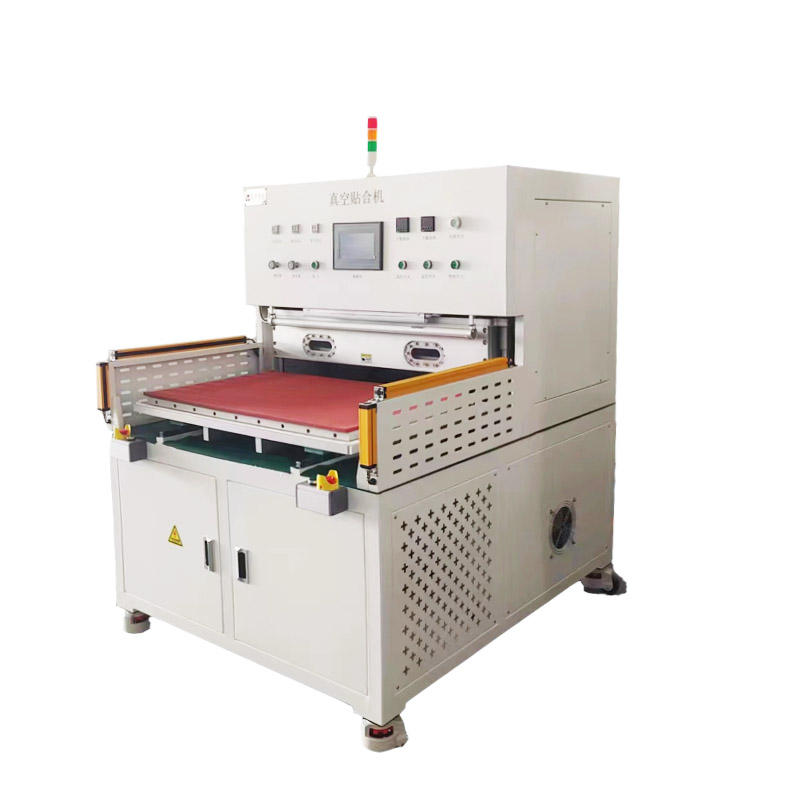

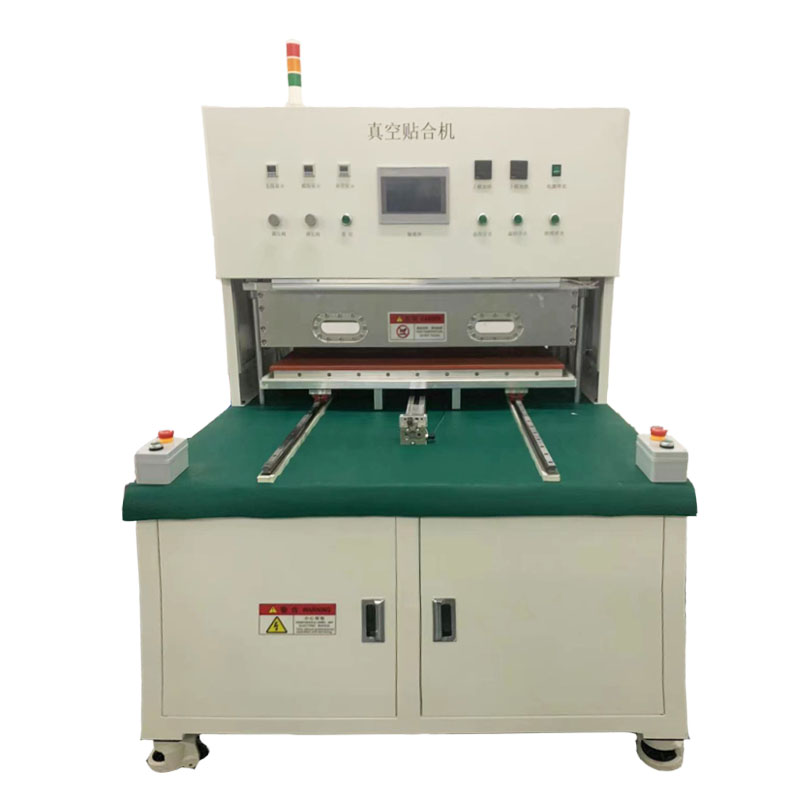

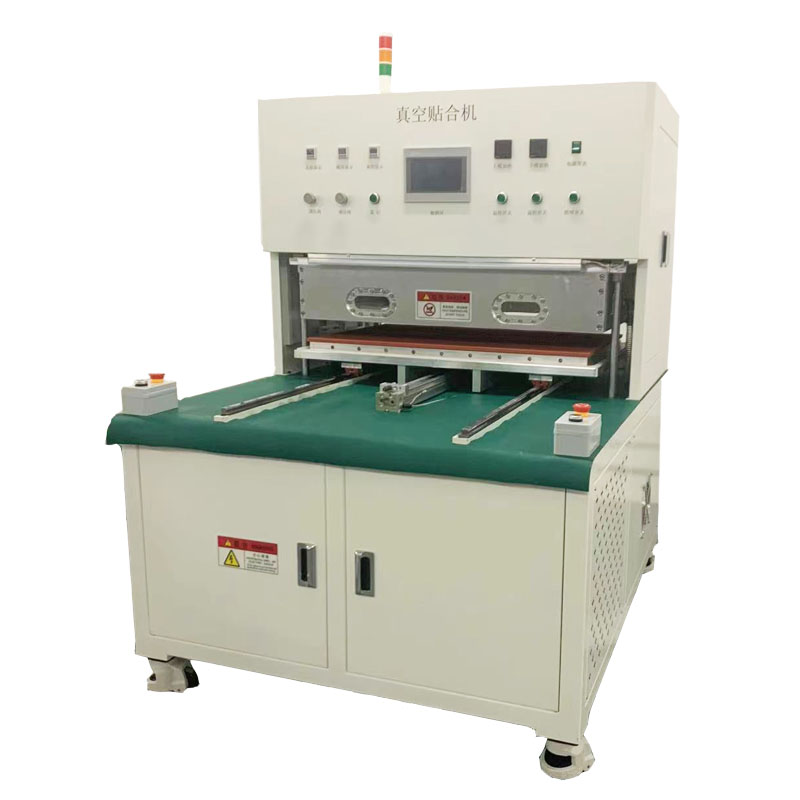

Large LCD Glass Laminating Machine for Optical Glue, Aerogel New Energy Lamination Hot Pressing
Principle of vacuum bonding machine: Place the product in a vacuum environment and use the cylinder pressure of the machine to press down the upper template, making the product in the cavity completely press together
Features
1. PLc control to ensure the quality of product adhesion;
2. High vacuum, reliable operation, simple operation, and short travel time
3. System control, Chinese/English switching, one click operation
4. The force bearing surface of the product is uniform, without bubbles or halos;
Specification
|
Model |
Dimension(mm) |
Table size(mm) |
Temp/press |
|
09E |
345*330*360 |
140*193 |
80C/0.6MPa |
|
017E |
420*460*495 |
345*260 |
80C/0.6MPa |
|
021E |
560*660*545 |
450*310 |
80C/0.6MPa |
|
030E |
1100*1600*1300 |
520*720 |
120C/0.4MPa |
|
035E |
1200*1600*1400 |
600*900 |
120C/0.4MPa |
|
045E |
1300*1600*1400 |
700*1000 |
120C/0.4MPa |
|
065E |
2300*2000*1500 |
1000*1600 |
120C/0.4MPa |
|
075E |
2300*2250*1500 |
1000*2000 |
120C/0.4MPa |
