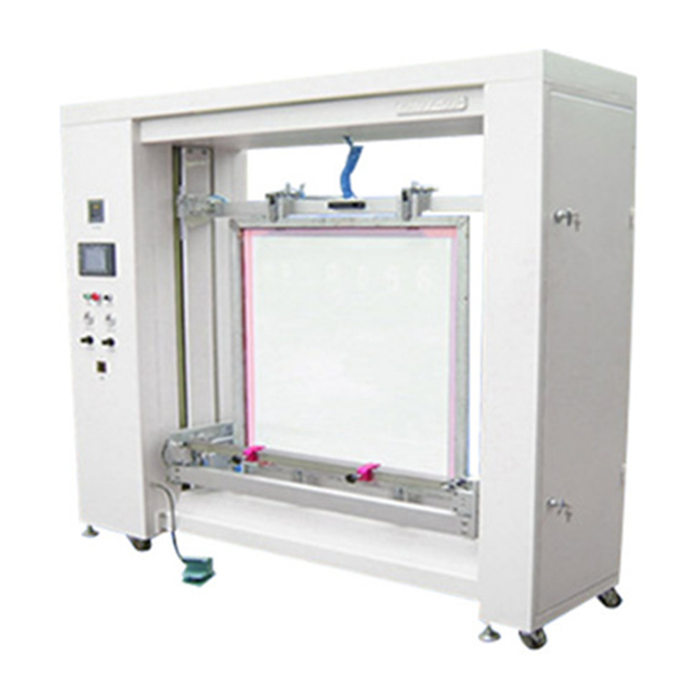

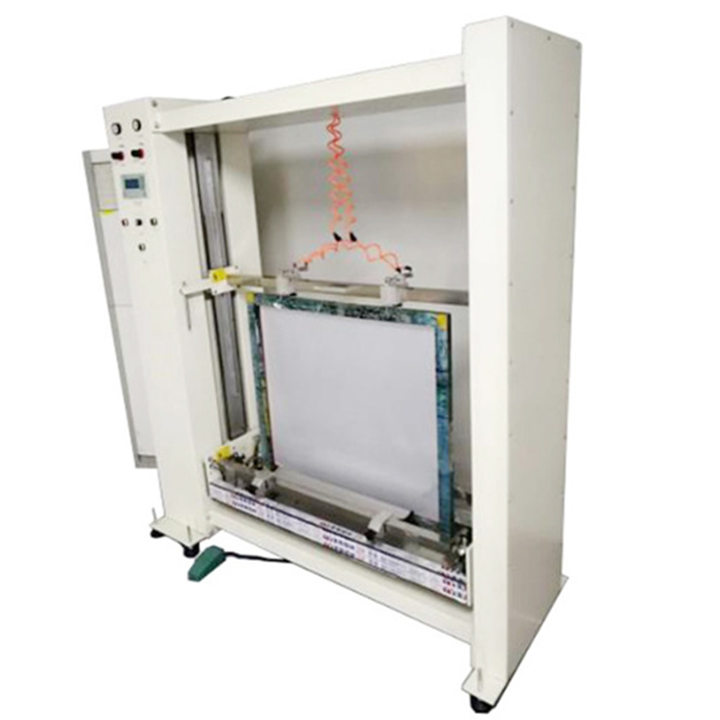

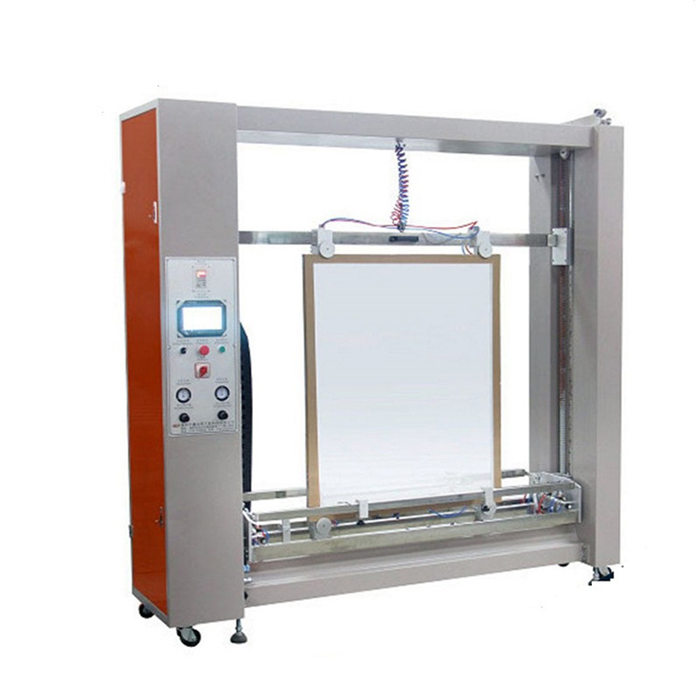

High-Precision, High-Density, Photosensitive Emulsions Coating Machine
Main usage characteristics
1. Dedicated to large area screen of high precision, high density, sensitive emulsion coating.
2. The whole machine can be set through the control panel automatic operation, without skilled technology can produce high-quality precision screen, also with adjustment with single action operation function.
3. Coating thickness can be controlled by setting coating pressure and coating times.
4. You can choose the single side after coating or double side coating at the same time.
5. Can choose normal upward or special downward direction coating, two-way speed can be adjusted for continuously variable speed.
6. Clamping frame, unframe action, controlled by foot switch air pressure fixture execution, to facilitate the hands to support the frame.
Program
Coating speed can be programmed by the front panel (50-650 cm/min.).The number of coating times of scraper surface (0-9 times) and printing surface (0-9 times) can be controlled by digital potentiometer.The indent time of the scraping groove can be controlled digitally (0-25 seconds).
Control mode
PLC Advanced programmable logic controller, with EPROM memory and RS-232 interface.FUF is controlled by a numerical frequency converter.
Frame size |
SB Frame width W800 -H1000 mm |
|
SL Frame length W1000-H1200 mm |
Note: Can be customized according to customer size |
|
Frame height W60 - H80 mm |
|
|
Frame thickness 20-45 mm |
|
|
L1920*W500*H2020 mm |
|
|
Deployable web layout |
Min:500*500mmmax:1000*1200mm |
|
Coating stroke |
1.0-1200MMinteradjustable; |
|
2.The control panel can set the cloth travel |
|
|
The accuracy of coater |
±2μm |
|
Coating workload |
30PCS/H200PCS/ day (calculated by conventional screen version) |
|
Power supply |
Specified voltage Φ3/220V/50HZ/60HZ |
|
Fuse protection 10A |
|
|
Capacity 1 kW |
|
|
Frequency 50/60 Hz |
|
|
Compressed air |
Link rank 6 bar Gas consumption value 5 lit/min |
|
(Mountings A) |
|
|
Level of noise |
< 70 dB(A) |
|
A set of aluminum alloy scraping groov(500MM ,550MM)±2 1 set,or( 600MM ,650MM)±2 1 set |
|
